Home  >  Product  >  LED Panel Light  >  Recessed  >  2x2FT Visional LED Panel Light

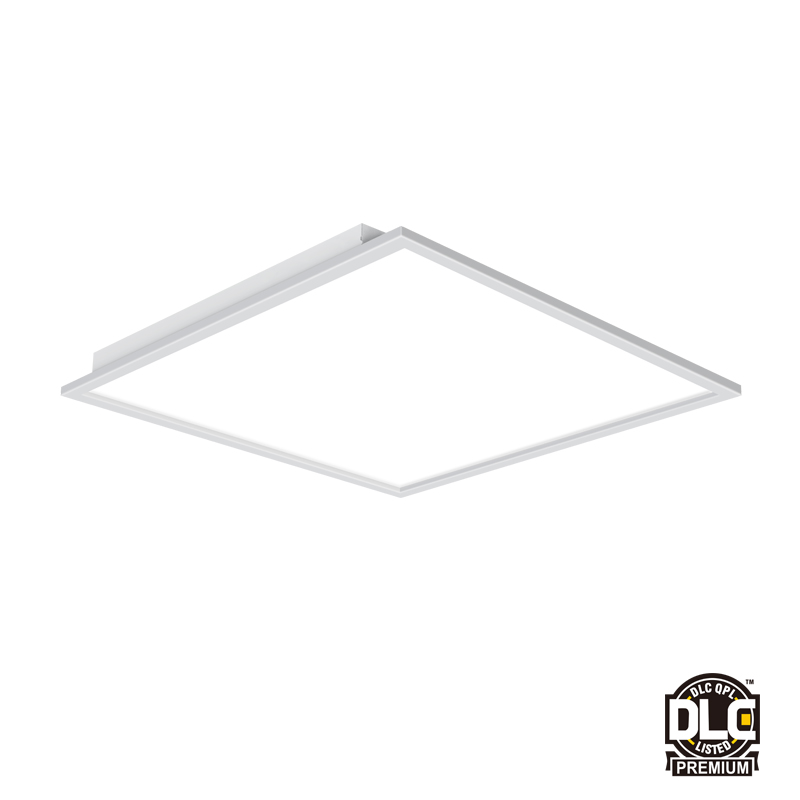

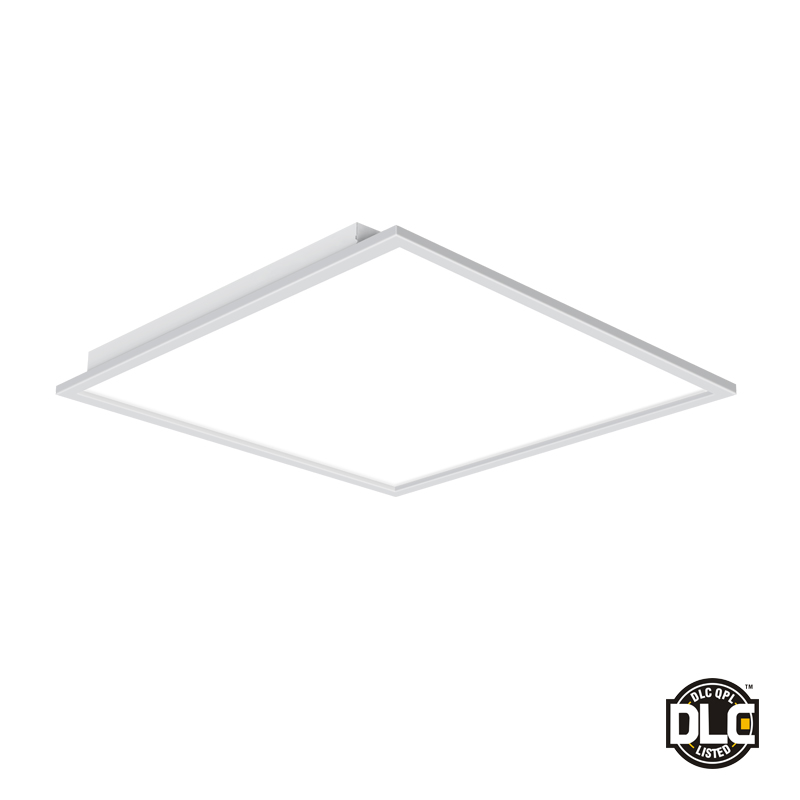

2x2FT Visional LED Panel Light

2x2FT LED Panel Light, 2x2 led flat panel light, 2x2 led drop ceiling lights, 2x2 led light panel
2x2FT LED Panel Light, 2x2 led flat panel light, 2x2 led drop ceiling lights, 2x2 led light panel
prev
  • 2x2FT LED Panel Light, 2x2 led flat panel light, 2x2 led drop ceiling lights, 2x2 led light panel
  • led light panel 2x2ft, 2x2 led flat panel light,led flat panel 2x2
next
  • Place of origin : China
  • Model No : VS22-DM**,VP22-DM-XXX
  • Price Terms : EXW
  • Minimum Order : 100pcs
  • Brand Name : OKT Lighting
  • Package : 2PCS PER CTN
  • Payment Terms : T/T,L/C,Paypal,Western Union
  • Delivery Time : It depends on your quantity
  • Inquire Online
  • Overview
  • Projects
  • Cut Sheet
  • Certificate/Qualifications
  • Video
  • FAQ
  • Comment

Description
The OKT 2x2ft LED Panel Lights(2x2 Troffer) reach up to 125 lumens per watt in 100~277 VAC or 120-347 VAC Input with included UL Recognized constant current driver which is available in 4000k, 5000k DLC CCT Options with 0-10V dimming available. The led light panel is a well-designed, lay-in ceiling troffer fixture for new construction applications or retrofitting existing fluorescent troffer light fixtures.

Performance Summary

 Model Number             VS22-DM*U  VS22-DM*P VP22-DM-XXE
 VP22-DM-XXP
 Input Wattage  40 Watts  40 Watts  40 Watts  40 Watts
 Input Voltage  100-277V AC  100-277V AC  120-347V AC  120-347V AC
 Delivered Lumen   4400 lm  5000 lm  4400 lm  5000 lm
 Efficacy ( lm/w)  110 lm/w  125 lm/w  110 lm/w  125 lm/w
 Color Rendering Index  Ra>80              Ra>80              Ra>80     Ra>80
 Power Factor  PF > 0.9  PF > 0.9  PF > 0.9  PF > 0.9
 0-10V Dimming  YES  YES  YES  YES
 Warranty  5 Years  5 Years  5 Years  5 Years
 UL  YES  YES  YES  YES
 ETL  YES  YES  N/A  N/A
 DesignLights Consortium®  DLC Standard Version  DLC Premium Version  DLC Standard Version  DLC Premium Version
 Damp Location  YES  YES  YES  YES

Applications

Great for new construction applications or retrofitting existing fluorescent troffer light fixtures, widely used this 2' x 2' square panel light for office spaces, major retail stores, education, government, healthcare, and hospitality.



Model Number
Version
Download(Cut Sheet)
Last Updated
-------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------
VS22-DM*U
40W 110LMW  100-277V AC
Data Sheet, LM79 ReportInstallation InstructionIES Files
13 Feb 2017
-------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------
VS22-DM*P
40W 125LMW  100-277V AC
Data Sheet, LM79 ReportInstallation InstructionIES Files
13 Feb 2017
-------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------
VP22-DM-XXE 40W 110LMW   120-347V AC
Data Sheet, LM79 ReportInstallation InstructionIES Files 29 Mar 2017
------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------
VP22-DM-XXP 40W 125LMW   120-347V AC
Data SheetLM79 Report, Installation InstructionIES Files
29 Mar 2017
-------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------


Certificate
Model Number
View (Certificate No.)
Issue Date
------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------
UL ALL E360437
-------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------
ETL VS22-DM** 5001795 Oct 17,2015
-------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------
Certificate
Model Number
Website
-------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------
DLC
VS22-DM4U
VS22-DM5U
VS22-DM4P
VS22-DM5P
VP22-DM-35E
VP22-DM-40E
VP22-DM-50E

http://www.designlights.org/QPL
-------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------

Drop Testing For 2X2FT LED Flat Panel Light                    Applications for LED Panel light


Q1: Do you have surface mount panel light?
A1: Yes, we have 2x2ft panel light.

Q2: If I need mixed CCT product for one model, can I get the whole quantity price?
A2: Yes, you can.

Q3: What would you do if the products stop working within the warranty period?
A3: If the products failed by normal using,we’ll return you a new one at all cost by us.

Q4: How to install the surface mounted led panel light?
A4: You can view our video at http://www.oktlighting.com/products-video.html

Q5: when can get one sample for test?
A5: Only three working days after your payments.

Q6: Is your panel color temperature tunnable?
A6: No.

Q7: Is your Light Guide Plate lasered?
A7: Lasered.

Q8: What CCT do you have with DLC?
A8: 4000K and 5000K.

Q9: What kind of your standard package looks like?
A9: pcs packed/carton for standard package.

Q10: How many panel lights do you manufacturing a month?
A10: Genarally speaking ,we can produce 6000-8000 pcs panels per month.
