Home  >  Product  >  LED Troffer  >  2X2FT  >  2x2 LED Troffer Light Fixture

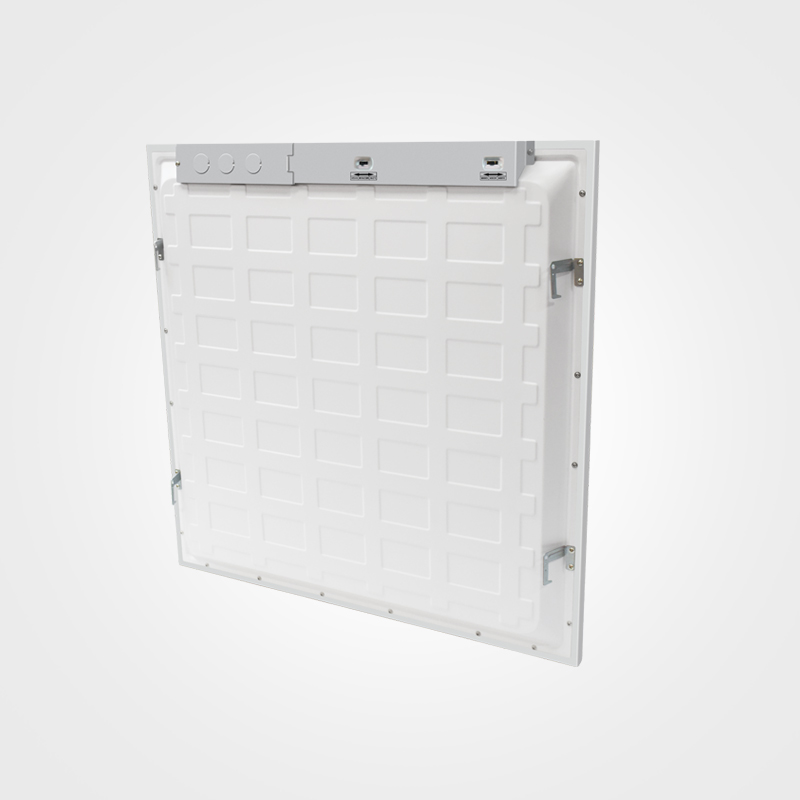

2x2 LED Troffer Light Fixture

2x2 LED Troffer Light Fixture
2x2 LED Troffer Light Fixture
prev
  • 2x2 LED Troffer Light Fixture
  • 2x2ft led troffer light
  • 2x2 led Troffer fixture
  • led 2x2ft troffer lighting
next
  • Place of origin : China
  • Model No : TR22-DL-XXE,TR22-DM-XXE,TR22-DM347-XXX
  • Price Terms : EXW
  • Minimum Order : 100PCS
  • Brand Name : OKT Lighting
  • Package : 1PCS PER CTN
  • Payment Terms : T/T,L/C,Paypal,Western Union
  • Delivery Time : It depends on your quantity
  • Inquire Online
  • N.A Version
  • EU Version
  • Projects
  • Cut Sheet
  • Certificate/Qualifications
  • Video
  • FAQ
Description

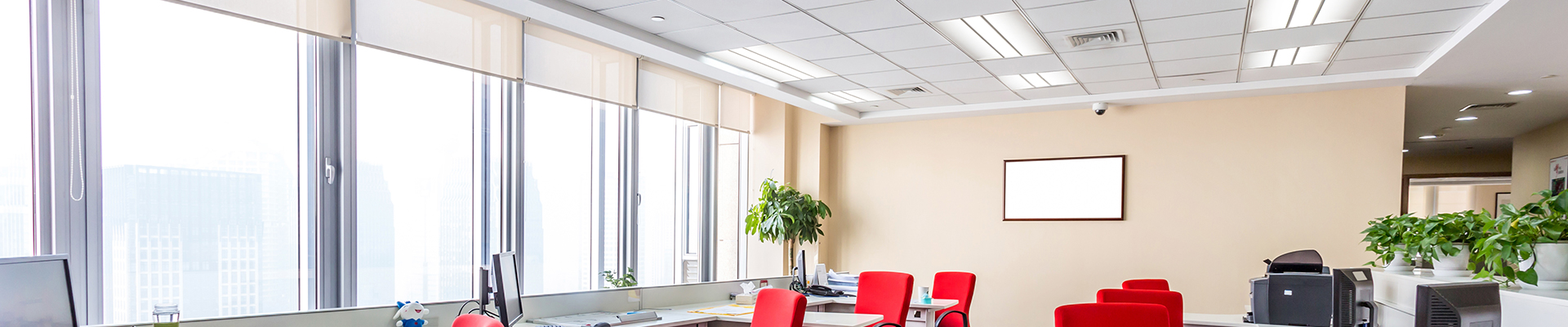

The OKT 2x2 LED Troffer Light Fixture reach up to 110 lumens per watt in 100-277V or 120-347V AC input option with included UL Recognized constant current driver. This 2x2 led troffer grid light fixture is available in 3000K, 3500K, 4000K, and 5000K color temperatures.It is dimmable which can compatible for most 0-10V Dimmers and also provided emergency backup and motion sensor function options. OKT's 2x2 led troffer fixture is a well-designed, lay-in ceiling troffer fixture for new construction applications or retrofit existing fluorescent panel light fixtures,widely used in office spaces,major retail stores, education, government, healthcare and hospitality.


Performance Summary
 Model  TR22-DL-XXE                     TR22-DM-XXE
 TR22-DM347-XXE
 Input Wattage  27 Watts  40 Watts  40 Watts
 Input Voltage  100-277V AC  100-277V AC
 120-347V AC
 Delivery Lumens  2700 lm  4400 lm  4400 lm
 Efficacy   100 lm/w  110 lm/w  110 lm/w
 Color Rendering Index ( CRI )  Ra>80  Ra>80
 Ra>80
 Power Factor  PF>0.9  PF>0.9
 PF>0.9
 Dimmable  0-10V Dimming  0-10V Dimming  0-10V Dimming
 Function Optional  Motion Sensor and Emergency Backup  Motion Sensor and Emergency Backup  N/A
 Warranty  5 Years  5 Years
 5 Years
 UL  YES  YES  YES
 ETL  YES  YES  YES
 DesignLights Consortium®
 YES  YES  N/A
 Damp Rated  YES  YES  YES


Features

 ●   UL, ETL and DLC listed
 ●   High Efficacy, up to 110lm/w
 ●   Motion sensor and emergency backup funtion options
 ●   0-10V Dimming
 ●   5 years limited warranty
 ●   Damp rated
 ●   100-277V or 120-347V AC input options



 Description
The OKT 595x595mm LED Troffer Lights reach up to 110 lumens per watt in 200-240 AC input option. It is a well-designed, lay-in ceiling troffer fixture for new construction applications or retrofiting existing fluorescent panel light fixtures,widely used in office spaces,major retail stores,education,government,healthcare,and hospitality.


Performance Summary
 Model  TR22E-DM-XXE
 Input Wattage  40 Watts
 Input Voltage  200-240V AC
 Delivery Lumens  4400 lm
 Efficacy   110 lm/w
 Color Rendering Index ( CRI )  Ra>80
 Power Factor  PF>0.9
 Dimmable  Options
 Warranty  5 Years
 Damp Rated  YES


Features

 ●   High Efficacy, up to 110lm/w
 ●   0-10V dimming
 ●   5 years limited warranty
 ●   Damp rated
 ●   200-240V AC input options


Model Number
Version
Download (Cut Sheet)
Last Updated
--------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------
TR22-DL-XXE 100-277V 27W Data SheetInstallation Instruction, LM79 Report, IES Files
Luminaire Photometric Test Report HD Image
13 Feb 2017
--------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------
TR22-DM-XXE /
TR22-DM347-XXE
100-277V 40W/
120-347V 40W
Data SheetInstallation InstructionLM79 Report, IES Files
Luminaire Photometric Test Report , HD Image
13 Feb 2017
--------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------


Certificate
Model Number
View (Certificate No.)
Issue Date
----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------
UL
ALL E360437 13 November 2014
----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------
ETL ALL 5001795 10 September 2015
---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------
Certificate
Model Number
Website
---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------
DLC TR22-DL-40E
TR22-DL-45E
TR22-DL-50E
TR22-DM-40E

TR22-DM-45E
TR22-DM-50E
http://www.designlights.org/QPL

----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------

 Installation of LED troffer
Q1: If I need mixed CCT product for one model, can I get the whole quantity price?
A1: Yes, you can.

Q2: How many panel lights do you manufacturing a month?
A2: Genarally speaking ,we can produce 6000-8000 pcs panels per month.

Q3: What would you do if the products stop working within the warranty period?
A3: If the products failed by normal using,we’ll return you a new one at all cost by us.

Q4: when can get one sample for test?
A4: Only three working days after your payments.

Q5: Is your panel color temperature tunnable?
A5: No.

Q6: Is your Light Guide Plate lasered?
A6: Lasered.

Q7: What CCT do you have with DLC?
A7: 4000K and 5000K.

Q8: What kind of your standard package looks like?
A8: pcs packed/carton for standard package.
