2x2FT Selected LED Flat Panel

2x2FT Selected LED Flat Panel
2x2FT Selected LED Flat Panel
prev
  • 2x2FT Selected LED Flat Panel
  • 2x2 led panel
  • led panel light
  • ul led light panel 2x2ft
next
  • Place of origin : China
  • Model No : SP22-DM-XXE,SP22-DH-XXE,SP22-DM347-XXE
  • Price Terms : EXW
  • Minimum Order : 100pcs
  • Brand Name : OKT Lighting
  • Package : 2PCS PER CTN
  • Payment Terms : T/T,L/C,Paypal,Western Union
  • Delivery Time : It depends on your quantity
  • Inquire Online
  • order info

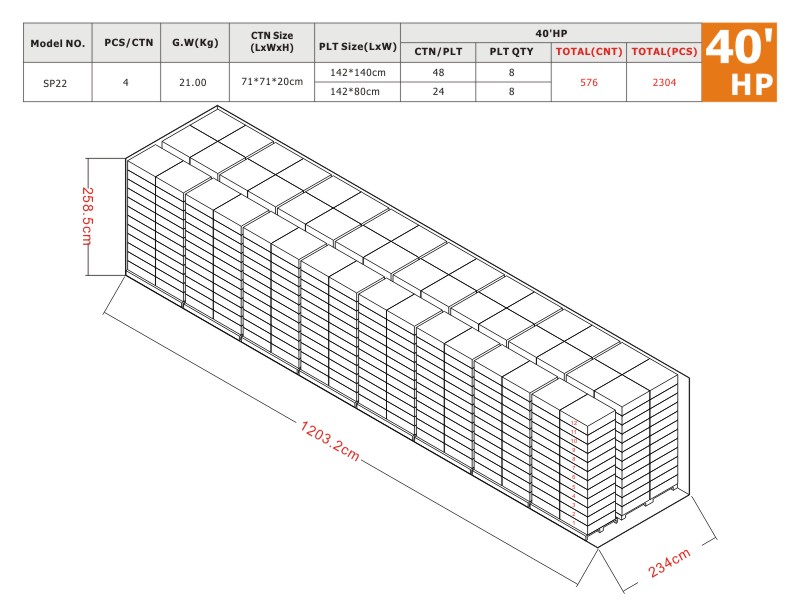

  • Package & Accessory
  • Cut Sheet
  • Certificate/Qualifications
  • Video
  • FAQ
Description
The clean and elegant design of OKT 2x2FT LED Flat Panels  provides a modern alternative to traditional 2x2ft fluorescent troffer, reach up to 110 lumens per watt in 100~277VAC or 347-480VAC Input with included UL Recognized constant current driver that delivers full-range dimming from a 0-10V control signalIt comes in  4000K and 5000k DLC Listed color temperatures, with wattage options ranging from 40W to 50W.
These low profile LED Flat Panels are great for replacing old fluorescent fixtures, resulting in a cleaner look and save on energy at the same time. Popular installations include drop ceilings ,as pendants or drywall using the optional recessed mounting kit.

Performance Summary
 Model  SP22-DM-XXE                     SP22-DH-XXE
 SP22-DM347-XXE
 Input Wattage  40 Watts  50 Watts  42 Watts
 Input Voltage  100-277V AC  100-277V AC
 347-480V AC
 Delivery Lumens (4000K)  4192 lm  5299 lm  4192 lm
 Efficacy   106.5 lm/w  102 lm/w  106.5 lm/w
 DeliverLumens (5000K)
 4521.8 lm  5820 lm  4521.8 lm
 Efficacy
 115 lm/w  112 lm/w  115 lm/w
 Color Rendering Index ( CRI )  Ra>80  Ra>80
 Ra>80
 Power Factor  PF>0.9  PF>0.9
 PF>0.9
 0-10V Dimming  YES  YES  YES
 Dimming Current  0.04-0.37mA  0.04-0.37mA
 0.04-0.19mA
 Warranty  5 Years  5 Years
 5 Years
 ETL  YES  YES  YES
 DesignLights Consortium®
 YES  YES  N/A
 Damp Rated  YES  YES  YES


Features

5 Years limited warranty
0-10v dimming function
No flickering, brightness uniformity
High efficacy, up to 110lm/w
ETL, DLC listed
Available for surface mounted accessary
Damp rated

Applications
It provide smooth and uniform light edge-to-edge for a clean, modern look for new construction applications or retrofitting existing fluorescent troffer light fixtures, widely used in office spaces, major retail stores, education, government, healthcare, and hospitality.


Model Number
Version
Download (Cut Sheet)
Last Updated
------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------
SP22-DM-XXE
40W 100-277V
Data Sheet, LM79 Report, IES FilesInstallation Instruction,
Luminaire Photometric Test Report
HD Image

26 March 2015
------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------
SP22-DH-XXE
50W 100-277V Data Sheet, LM79 Report, IES FilesInstallation Instruction,
Luminaire Photometric Test Report
HD Image

26 March 2015
------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------
SP22-DM347-XXE
42W 347-480V Data SheetInstallation InstructionHD Image
26 March 2015
------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------

Certificate
Model Number
View (Certificate No.)
Issue Date
-----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------
ETL ALL 5001795 10 September 2015
------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------
-----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------
Certificate
Model Number
Website
-----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------
DLC
SP22-DM-XXE
SP22-DH-XXE
http://www.designlights.org/QPL
-----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------

Applications for 2X2FT Selected LED Panel Light

Q1: How many panel lights do you manufacturing a month?
A1: Genarally speaking ,we can produce 6000-8000 pcs panels per month.

Q2: If I need mixed CCT product for one model, can I get the whole quantity price?
A2: Yes, you can.

Q3: What would you do if the products stop working within the warranty period?

A3: If the products failed by normal using,we’ll return you a new one at all cost by us.

Q4: when can get one sample for test?

A4: Only three working days after your payments.

Q5: Is your panel color temperature tunnable?

A5: No.

Q6: Is your Light Guide Plate lasered?

A6: Lasered.

Q7: What CCT do you have with DLC?

A7: 4000K and 5000K.

Q8: What kind of your standard package looks like?

A8: pcs packed/carton for standard package.
