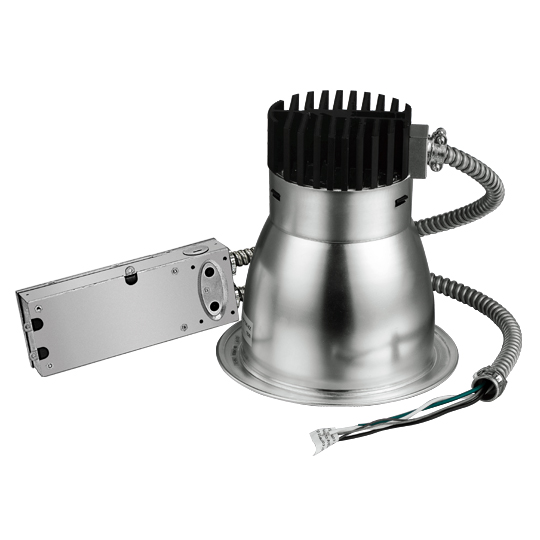

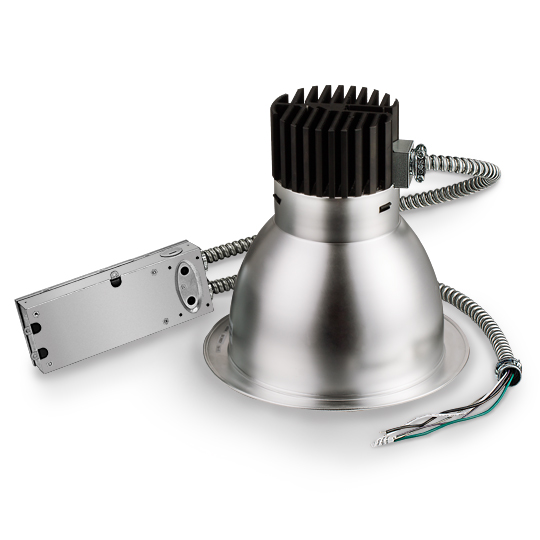

347V 6inch Commercial LED Downlight

347V 6inch Commercial LED Downlight
347V 6inch Commercial LED Downlight
prev
  • 347V 6inch Commercial LED Downlight
  • 347V 6inch led commercial recessed downlights ul
  • 347V 6inch cree led commercial downlight
  • 347V 6inch commercial led retrofit downlight cree cob
  • 347V 6inch ul listed commercial led recessed lighting
next
  • Place of origin : China
  • Model No : C6-D30W-XXXX-347, C6-D45W-XXXX-347
  • Price Terms : EXW
  • Minimum Order : 100pcs
  • Brand Name : OKT LIGHTING
  • Package : 2PCS PER CTN
  • Payment Terms : T/T,L/C,Paypal,Western Union
  • Delivery Time : It depends on your quantity
  • Inquire Online
  • order info
  • Package & Accessory
  • Cut Sheet
  • Certificate/Qualifications
  • Video
  • FAQ
Description
The OKT 347V 6inch Commercial LED Downlights delivers high lumens of exceptional 80+ CRI. 347-480VAC  operation with included 0~10V dimmable constant current LED driver. It can replace for most manufacturers incandescent, CFL or H.I.D. fixtures with apertures of 6.1" min.to 6.7" max diameter.

Performance Summary
 Model Number             C6-D30W-XXXX-347  C6-D45W-XXXX-347
 Input Wattage  30 Watts  45 Watts
 Input Voltage  347-480VAC  347-480VAC
 Delivered Lumen  2165 lm  3106 lm
 LED Chip  CREE COB  CREE COB
 Color Rendering Index  Ra>80  Ra>80
 Sign Current  0.2mA  0.2mA
 Dimmable  0-10V Dimming  0-10V Dimming
 Lifespan ( Hours)  50,000  50,000
 Warranty (Years)  5  5
 UL  YES  YES
 Damp Rated  YES  YES

Features
cULus listed
347-480V AC Input
Adopt the CREE COB by CREE truewhite technology
0-10V dimming available
5 years limited warranty
Damp rated
40° beam angle


Application
Great for installation in all compatible recessed housings found in hotel, office spaces, major retail stores, education facilities,government buildings, hospitals ect.

Model Number
Version
Download (Cut Sheet)
Last Updated
---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------
C6-D30W-XXXX-347
30W 347V-480V Data Sheet ,Installatin Instruction, HD Image 11 November 2014
---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------
C6-D45W-XXXX-347
45W 347V-480V Data Sheet , Installatin InstructionHD Image
11 November 2014
---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------
Certificate
Model Number
View (Certificate No.)
Last Updated
---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------
UL Classified ALL E355621
4 Dcember 2014
---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------


How to install LED Commercial Downlight
Q1: How many steps Macadam of your CREE Chip?
A1: We use 4 steps, 2 steps are available but with longer lead time and higher cost.

Q2: What is the driver Brand of your 347V commercial downlights?
A2: Inventronics.

Q3: What kind of lamps do the commercial downlight replace?
A3: CFL, HID, Metal halide lamp or incandescent.

Q4: Do you offer mounting brackets as well?
A4: Yes, we can supply mounting frame.

Q5: What's the difference between AC dimmable and DC dimmable?
A5: The obvious difference is the difference of working voltage. AC120V should AC dimmable, 100-277V should DC dimmable.

Q6: What's the difference beween new version and old version downlight?
A6: We add one lens in the new version downlight, so the light will be soft and even. There are 4'' and 10'' downlights more in the new version.

Q7: Do you have smaller package for downlight, the shipping cost is too much.
A7: No, we don't have. It is our standard package. The shipping cost is cheap if ship by sea.
