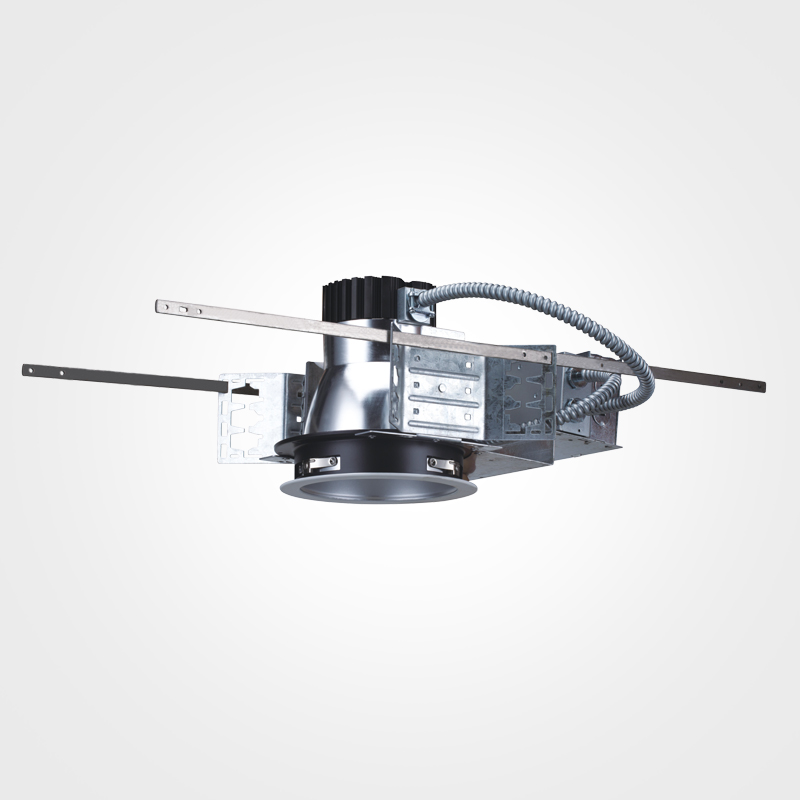

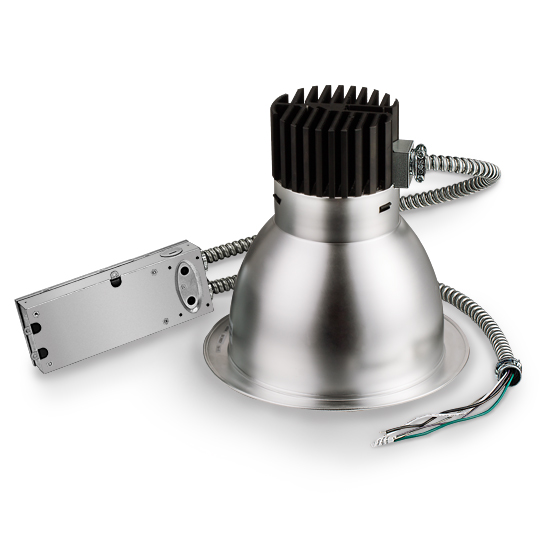

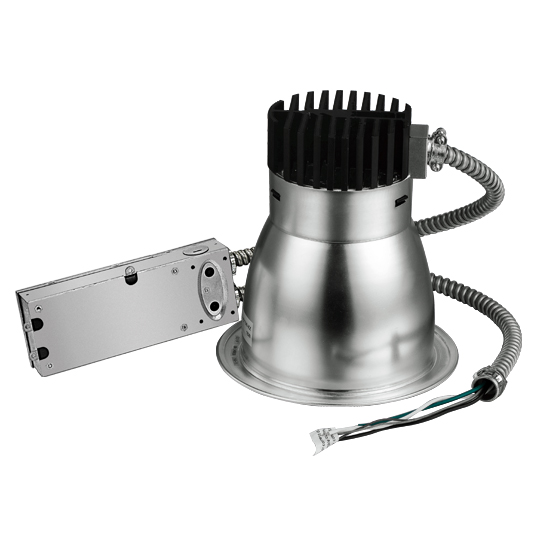

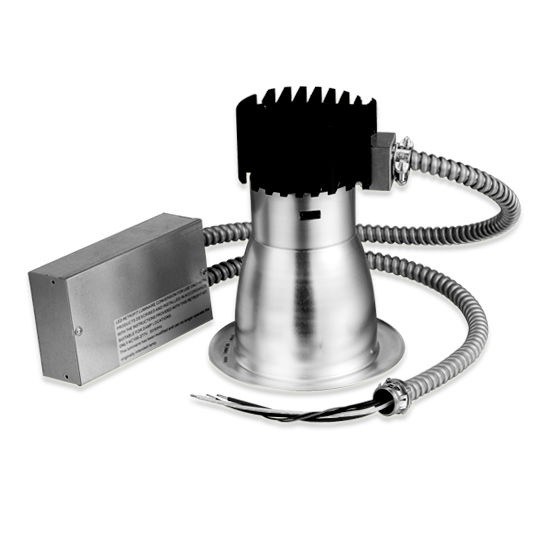

6inch Commercial LED Downlight

6inch Commercial LED Downlight
6inch Commercial LED Downlight
prev
  • 6inch Commercial LED Downlight
  • 6inch led commercial down lights
  • 6inch architechtural led commercial retrofit downlight
  • 6inch commercial led recessed downlights
next
  • Place of origin : China
  • Model No : CE6-18W-XXE, CE6-27W-XXE, CE6-40W-XXE
  • Price Terms : EXW
  • Minimum Order : 100pcs
  • Brand Name : OKT LIGHTING
  • Package : 2PCS PER CTN
  • Payment Terms : T/T,L/C,Paypal,Western Union
  • Delivery Time : It depends on your quantity
  • Inquire Online
  • order info
  • Package & Accessory
  • Cut Sheet
  • Certificate/Qualifications
  • Video
  • FAQ
Description
The OKT 6inch Commercial LED Downlights delivers high lumens of exceptional 80+ CRI, Lifetime>50000H with 3000K, 4000K, 5000K ES color temperatures options. 100-277 VAC operation with included 0~10V dimmable constant current LED driver. It can replace for most manufacturers incandescent, CFL or H.I.D. fixtures with apertures of 6.1" min.to 6.7" max diameter.

Performance Summary
 Model Number             CE6-18W-XXE  CE6-27W-XXE  CE6-40W-XXE
 Input Wattage  18 Watts  27 Watts  40 Watts
 Input Voltage  100-277V AC  100-277V AC  100-277V AC
 Delivered Lumen (3000k)   1606 lm  2341 lm  3346 lm
 Efficacy ( lm/w)  89.38 lm/w  88.4 lm/w  83.83 lm/w
 Delivered Lumen (3500k)   1611 lm  2348 lm  3363 lm
 Efficacy ( lm/w)
 91.64 lm/w  89.69 lm/w  84.16 lm/w
 Delivered Lumen (4000k)   1624lm  2366 lm  3387 lm
 Efficacy ( lm/w)  92.06 lm/w  90.13 lm/w  85.21 lm/w
 Delivered Lumen (5000k)   1639 lm  2387 lm  3447 lm
 Efficacy ( lm/w)  93.18 lm/w  90.86 lm/w  86.41 lm/w
Color Rendering Index  Ra>80  Ra>80  Ra>80
 Power Factor  PF > 0.9  PF > 0.9  PF > 0.9
 Dimming  0-10V Dimming  0-10V Dimming  0-10V Dimming
 Lifespan ( Hours)  50,000  50,000  50,000
 Warranty (Years)  5  5  5
 UL  YES  YES  YES
 Energy Star®  YES  YES  YES
 Damp Rated  YES  YES  YES

Features
cULus, ENERGY STAR® Listed
40° beam angle
5 years limited warranty
0-10v dimming( pls contact OKT Sales representative if need triac dimming version)
Damp rated


Applications

UL Classified for installation in all compatible recessed housings found in hotel, office spaces, major retail stores, education facilities,government buildings, hospitals ect.


Model NO.
Version
Download (Cut Sheet)
Last Updated
--------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------
CE6-18W-XXE
18W 100-277V
Data SheetInstallation InstructionLM79 ReportIES Files, Brochures,
Luminaire Photometric Test ReportHD Image
8 August 2016
-------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------
CE6-27W-XXE
27W 100-277V
Data SheetInstallation InstructionLM79 ReportIES FilesBrochures,
Luminaire Photometric Test ReportHD Image
8 August 2016
-------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------
CE6-40W-XXE
40W 100-277V
Data SheetInstallation InstructionLM79 Report IES Files, Brochures,
Luminaire Photometric Test ReportHD Image
8 August 2016
-------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------

Certificate
Model Number
View (Certificate No.)
Issue Date
------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------
UL Classified
ALL
E355621
25 April 2016
------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------
Energy Star
CE6-18W-XXE
CS19287
7 April 2016
------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------
Energy Star
CE6-27W-XXE
CS19288
7 April 2016
------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------
Energy Star
CE6-40W-XXE
CS19285 7 April 2016
------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------
 How to Install led commercial downlight
Q1: Can your commercial downlight to be installed without replacing the reflector?
A1: Our commercial downlight retrofit the original reflector and lamp directly, it’s more convenient and the lighting performance is as same as before.

Q2: What would you do if downlight fails within warranty period?
A2: If evidenced that failure is due to quality issue, we will send customer a new one for replacement.

Q3: What kind of lamps do the commercial downlight replace?
A3: CFL, HID, Metal halide lamp or incandescent.

Q4:  Is your commercial downlight DLC listed?
A4: Downlight is regulated to Energy Star. DLC and Energy Star are two categories of energy saving certificates, one product can only obtain either of them.

Q5: Do you sell can (housing)?
A5: No, we do not. But we can recommend a reliable housing factory for you. (OMD, Liteharbor)

Q6: Do you have smaller package for downlight, the shipping cost is too much.
A6: No, we don't have. It is our standard package. The shipping cost is cheap if ship by sea.

Q7: Do you offer mounting brackets as well?
A7: Yes, we can supply mounting frame.

Q8: What’s the difference between new version and old version downlight?
A8: We add one lens in new version downlight,so the light will be soft and even,there are 4” and 10” downlights more in the new version.

Q9:   I want to find a good retrofit option for the 6inch outdoor soffit lights, which led downlight should I choose?
A9: Two suggestions, one is 6inch 11w 277v downlights, one is 6inch 14w economic downlights, 277v.
