1.3in Surface Linear

1.3in Surface Linear

Model No
ZE-X1-IXXDX
Price
Get Latest Price
Get the latest price
Quantity Needed:
Pieces
E-mail:

Downloads

Brochures-Zeta Series 1.3  Linear





Brochures

ZE1.3-Int Driver data-sheet - Surface


Data Sheet

Install Instructions-ZE1.3 Int-driver Install Instructions-Surface



Installation Instruction

Surface

IES Files - Zeta 1.3 inch surface Mount Linear Diffuser



IES Files

Diffuser

IES Files - Zeta 1.3 inch surface Mount Linear Louver



IES Files

Louver

IES Files - Zeta 1.3 inch surface Mount Linear Reflector



IES Files

Reflector

IES Files - Zeta 1.3 inch surface Mount Linear Convex





IES Files

Convex

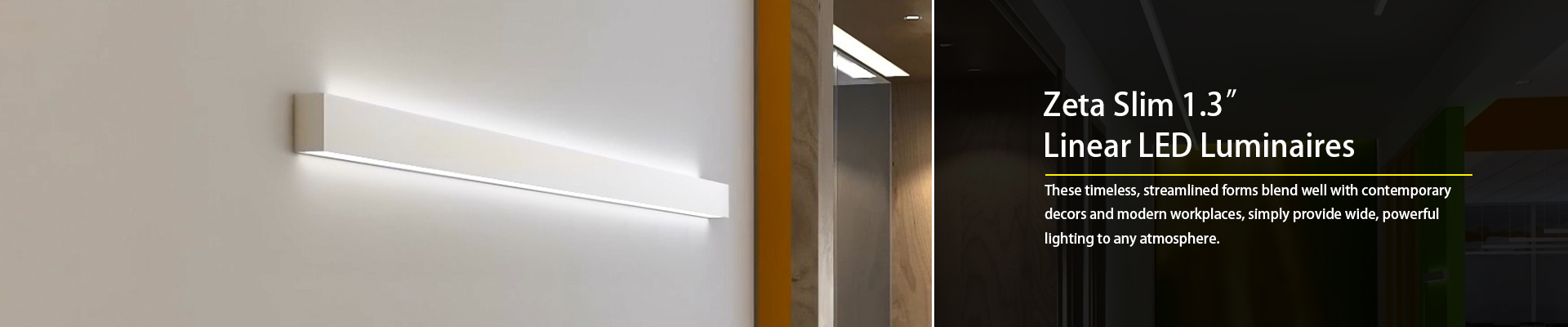

Zeta Slim 1.3" Surface Linear
Zeta series is a unique linear series that brings any space to the center stage. These timeless, streamlined forms blend well with contemporary decors and modern workplaces. These linear luminaries simply provide wide, powerful lighting to any atmosphere.


√  Available in 2’, 4’ and 8'


Concept:The LED luminaire market has become more competitive, we see many similar products, that only focus on price. We designed a lighting product that achieves innovation, versatility and affordability together, and it was named after the Greek letter Zeta; the shape of the letter Z resembles lightning.




led linear light fixture

Visual Comfort
Zeta offers a selection of professional lenses such as diffuser, louver, micro reflector and convex; each of these lenses challenges the critical glare rating and elevate our entire architectural product line to a higher standard. These precise distributions can better decorate the space without any concern.


√   Diffuser: 100° beam angle. It is allowing the light to custom the diffuser lengths, up to 42'.

√   Louver:  60° beam angle. Exclusive low glare modular optics, UGR less than 15 (Black)

√   Mico reflector: 48° beam angle. Straight blade louver, allows the light to diffuse for a direct and indirect lighting combination.

√   Convex: 110° beam angle. Unique design with acrylic lens


When suspended, the Zeta Series can provide smooth direct or indirect

lighting distribution, allowing for wider spacing between fixtures and

better ceiling light uniformity

Application Flexibility
Unleash lighting design flexibility with Zeta with different shapes and patterns, it adds fun factor into each room. These creations will let you suggest rhythm, communicate meaning and showcase element of life.


√   Available in “一”joiner,“十”joiner,“T”joiner, “L” joiner and "Y" joiner.


Surface Mounted Linear Light

Simple And Clean Performance
Built on the core of its modern, practical design philosophy, the Zeta Series allows easy access to critical components to simplify installation or in the event that repair or replacement becomes necessary.


√   Each Power Feed: connections up to 40ft in 120VAC while connections up to 100ft in 277VAC

√   42' Continuous Roll-out lens available: Create clean, seamless runs that are quicker to install with this quality press-in acrylic lens that will not crinkle or bow.


Surface Mounted Linear Lighting




1.3" Surface Linear-Diffuser
Zeta series is a unique and slim surface linear led series that brings any space to the center stage. These timeless, streamlined forms blend well with contemporary decors and modern workplaces. These linear luminaries is available in 2',4' and 8', simply provide wide, powerful lighting to any atmosphere with continuous runs. Built on the core of its modern, practical design philosophy, the Zeta Series allows easy access to critical components to simplify installation or in the event that repair or replacement becomes necessary.

Performance Summary

Finish: White, Black

CRI: Ra>80

PF: >0.9

Color Temp: 3000K,3500K,4000K

LED Lifetime: >50,000H L70 minimum

Dimming: 1-10V

Tested Dimmers: Lutron ® Diva-Dvtv, Leviton ® IP-710-D

Driver: Internal

Mouting: Surface mounted


Features

UL, CUL, Damp rated

A selection of professional lenses available

Seamless continuous runs

Custom pattern, available in “一”joiner,“十”joiner,“T”joiner, “ L” joiner and "Y" joiner

5 years limited warranty


   Specification

Surface Mount Linear LED Fixture  ZE-21-IXXXD

Size: 2FT

Wattage: 20W

Efficacy: 105 lm/w, 1050 lm/ft

Bean Angle: 100°

Surface Mount Linear LED Light  ZE-41-IXXXD

Size: 4FT

Wattage: 40W

Efficacy: 105 lm/w, 1050 lm/ft

Bean Angle: 100°

Surface Mount Linear LED Light  ZE-81-IXXXD

Size: 8FT

Wattage: 80W

Efficacy: 105 lm/w, 1050 lm/ft

Bean Angle: 100°




1.3" Surface Linear-Louver
Zeta series is a unique and slim surface mounted linear light series that brings any space to the center stage. These timeless, streamlined forms blend well with contemporary decors and modern workplaces. These linear luminaries is available in 2', 4' and 8', simply provide wide, powerful lighting to any atmosphere with continuous runs. Built on the core of its modern, practical design philosophy, the Zeta Series allows easy access to critical components to simplify installation or in the event that repair or replacement becomes necessary.

Performance Summary

Finish: White, Black

CRI: Ra>80

PF: >0.9

Color Temp: 3000K,3500K,4000K

LED Lifetime: >50,000H L70 minimum

Dimming: 1-10V

Tested Dimmers: Lutron ® Diva-Dvtv, Leviton ® IP-710-D

Driver: Internal

Mouting: Surface mounted


Features

UL, CUL, Damp rated

A selection of professional lenses available

Seamless continuous runs

Custom pattern, available in “一” joiner,“十” joiner,“T” joiner, “ L” joiner and “ L” joiner

5 years limited warranty


   Specification

surface mounted linear luminaire  ZE-21-IXXXL

Size: 2FT

Wattage: 20W

Efficacy: 75 lm/w, 750 lm/ft

UGR<19 (Black)

surface mounted linear led  ZE-41-IXXXL

Size: 4FT

Wattage: 40W

Efficacy: 75 lm/w, 750 lm/ft

UGR<19 (Black)

surface mounted linear led  ZE-81-IXXXL

Size: 8FT

Wattage: 80W

Efficacy: 75 lm/w, 750 lm/ft

UGR<19 (Black)




1.3" Surface Linear-Reflector
Zeta series is a unique and slim surface mounted linear light that brings any space to the center stage. These timeless, streamlined forms blend well with contemporary decors and modern workplaces. These linear luminaries is available in 2',4' and 8', simply provide wide, powerful lighting to any atmosphere with continuous runs. Built on the core of its modern, practical design philosophy, the Zeta Series allows easy access to critical components to simplify installation or in the event that repair or replacement becomes necessary.

Performance Summary

Finish: White, Black

CRI: Ra>80

PF: >0.9

Color Temp: 3000K,3500K,4000K

LED Lifetime: >50,000H L70 minimum

Dimming: 1-10V

Tested Dimmers: Lutron ® Diva-Dvtv, Leviton ® IP-710-D

Driver: Internal

Mouting: Surface mounted


Features

UL, CUL, Damp rated

A selection of professional lenses available

Seamless continuous runs

Custom pattern, available in “一” joiner,“十” joiner,“T” joiner, “ L” joiner and “ Y” joiner

5 years limited warranty


   Specification

surface mounted led linear light  ZE-21-IXXXR

Size: 2FT

Wattage: 20W

Efficacy: 120 lm/w, 1200 lm/ft

UGR: < 15

surface mounted linear lights  ZE-41-IXXXR

Size: 4FT

Wattage: 40W

Efficacy: 120 lm/w, 1200 lm/ft

UGR: < 15

surface mounted linear lights  ZE-81-IXXXR

Size: 8FT

Wattage: 80W

Efficacy: 120 lm/w, 1200 lm/ft

UGR: < 15




1.3" Surface Linear-Convex
Zeta series is a unique and slim surface mounted linear light fixture that brings any space to the center stage. These timeless, streamlined forms blend well with contemporary decors and modern workplaces. These linear luminaries is available in 2',4' and 8', simply provide wide, powerful lighting to any atmosphere with continuous runs. Built on the core of its modern, practical design philosophy, the Zeta Series allows easy access to critical components to simplify installation or in the event that repair or replacement becomes necessary.

Performance Summary

Finish: White, Black

CRI: Ra>80

PF: >0.9

Color Temp: 3000K,3500K,4000K

LED Lifetime: >50,000H L70 minimum

Dimming: 1-10V

Tested Dimmers: Lutron ® Diva-Dvtv, Leviton ® IP-710-D

Driver: Internal

Mouting: Surface mounted


Features

UL, CUL, Damp rated

A selection of professional lenses available

Seamless continuous runs

Custom pattern, available in “一” joiner,“十” joiner,“T” joiner, “ L” joiner and “ Y” joiner

5 years limited warranty


   Specification

surface mounted linear light fixture  ZE-21-IXXXC

Size: 2FT

Wattage: 20W

Efficacy: 110 lm/w, 1100 lm/ft

Optics:Acrylic

surface mounted linear lighting fixture  ZE-41-IXXXC

Size: 4FT

Wattage: 40W

Efficacy: 110 lm/w, 1100 lm/ft

Optics:Acrylic

surface mounted linear lighting fixture  ZE-81-IXXXC

Size: 8FT

Wattage: 80W

Efficacy: 110 lm/w, 1100 lm/ft

Optics:Acrylic
