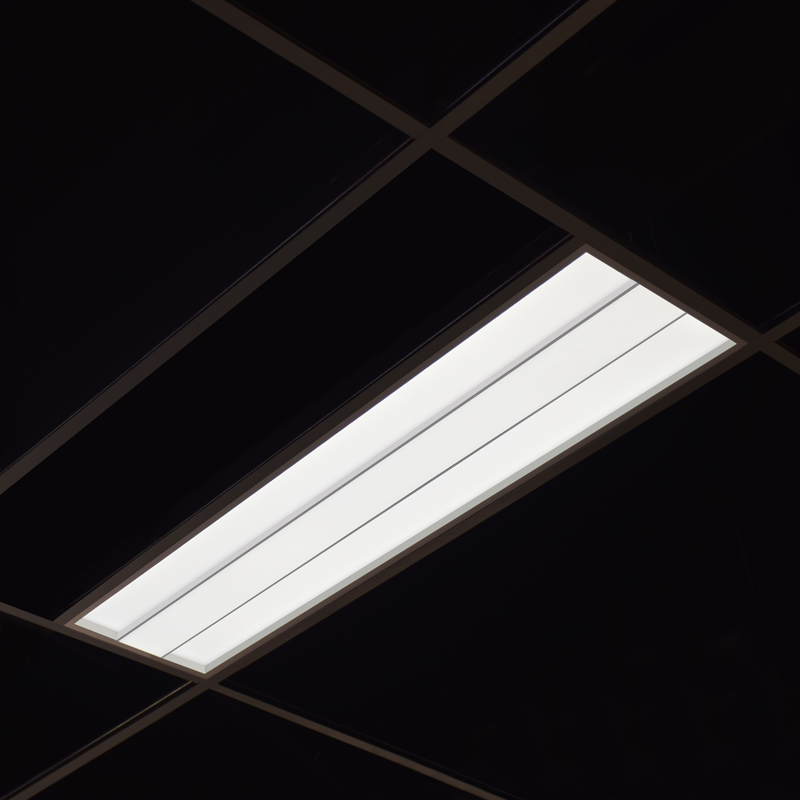

1X4FT LED Troffer

1X4FT LED Troffer

Model No
Get Latest Price
Get the latest price
Quantity Needed:


CURVED Troffer Sale Sheet



Sale Sheet

TR-DM-TWTS Data-Sheet



Data Sheet

TR Installation Instructions



Installation Instruction

LM79 TR14



LM79 Report

IES Files  TR14


IES Files


1x4FT Architectural LED Troffer
The 1X4FT LED Troffer features a compact yet sturdy aluminum construction designed to blend into modern architectural spaces. Featuring back-lit technology, it is ideal for all standard 1x4ft grid ceilings. This 1X4FT LED Troffer reachs up to 110 lumens per watt in 110-277V or 110-347V AC input option and also provided LED emergency driver and motion sensor function options. This creates a soft and comfortable lighting experience for commercial and institutional spaces including open offices, classrooms, retail and healthcare facilities, goes beyond what was previously possible with traditional LED luminaires.
Performance Summary

Model: TR14-DM-TWTS

Wattage Adjustable: 35W/30W/25W

Efficacy: 110 lm/w

Luminous Flux: Up to 3800LM

CRI: Ra>80

PF: >0.9

LED Lifetime: >50,000H L70 minimum

Dimming: 1-10V

Tested Dimmers: Lutron ® Diva-Dvtv, Leviton ® IP-710-D

Materials: Aluminum

Mounting: Recessed


UL, cUL Listed, DLC Qualification, Damp Rated

Clean and architectural design

Uniform and soft illumination with back-lit technology

CCT adjustable from 3500K,4000K and 5000K

Wattage adjustable

Emergency or sensor option

110~277V or 110~347V AC input voltage options

5 years limited warranty
