2X4FT LED Troffer Light

2X4FT LED Troffer Light

Model No
TR24-DM-XXE,TR24-DM-XXT, TR24-DH-XXE
Price
Get Latest Price
Get the latest price
Quantity Needed:
Pieces
E-mail:

Downloads

Data Sheet  TR24-DM-XXE



Data Sheet

TR24 Series

Installation TR24-DM-XXE



Installation Instruction

TR24 Series

LM79 Report TR24-DM-XXE



LM79 Report

TR24-DM-XXE

IES File  TR24-DM-XXE



IES Files

TR24-DM-XXE

LM79 Report TR24-DH-XXE



LM79 Report

TR24-DH-XXE

IES File TR24-DH-XXE



IES Files

TR24-DH-XXE

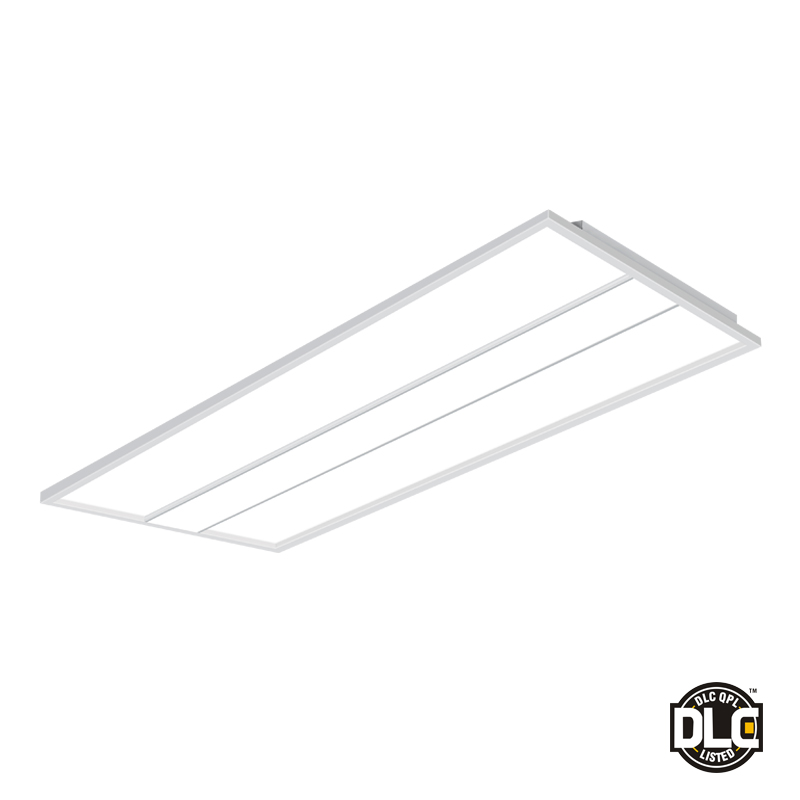

2X4FT Architectural LED Troffer

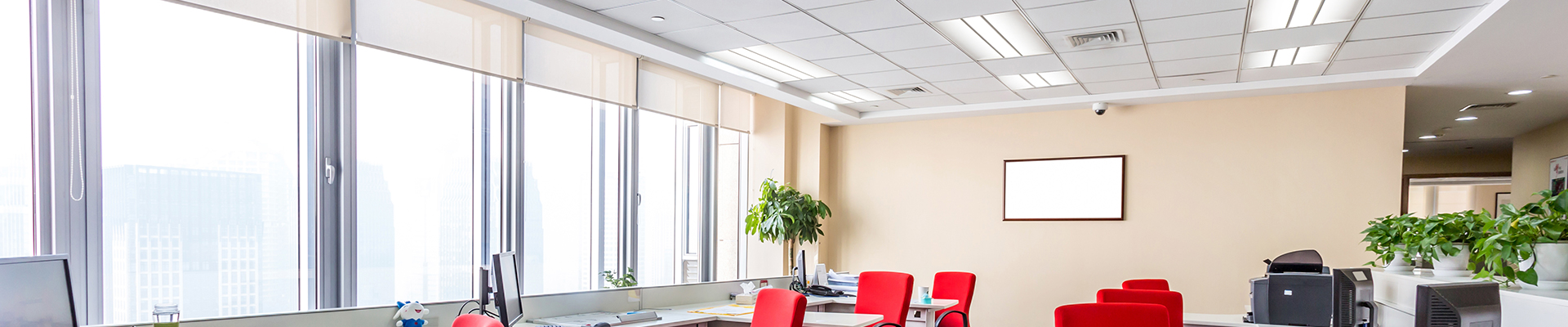

The OKT 2X4FT LED Troffer Lights reach up to 110 lumens per watt in 100-277VAC or 120-347VAC input option with included UL Recognized constant current driver. It is available in 4000K, 5000K DLC CCT Options with 1-10V dimming. It is a well-designed, lay-in ceiling troffer fixture for new construction applications or retrofiting existing fluorescent troffer light fixtures, widely used in office spaces, major retail stores, education, government, healthcare, and hospitality.

Performance Summary

CRI: Ra>80

PF: >0.9

LED Lifetime: >50,000H L70 minimum

Dimming: 1-10V

Tested Dimmers: Lutron ® Diva-Dvtv, Leviton ® IP-710-D

Materials: Aluminum

Mounting: recessed

Dimensions: L 47.72"x W 23.82" x H 3.96"


Feature

UL, DLC listed, damp rated

Motion sensor option

Emergency Option

120-347V AC input options

5 years limited warranty
120-347V AC input options




Specification
Available in 40W and 62W

2X4FT LED Troffer Light  2'x4' 40W Standard

Model: TR24-DM-XXE

Efficacy: 110 lm/w

Luminous Flux: 4400LM

Input Voltage: 100-277V AC

2x4 led troffer light  2'x4' Wattage Adjustable 30W/40W/50W

Model: TR24-DM-XXT

Efficacy: 100 lm/w

Luminous Flux: Up to 5000LM

Input Voltage: 100-277V AC

led troffer 2x4 2'X4' 60W Standard

Model: TR24-DH-XXE

Efficacy: 110 lm/w

Luminous Flux: 6600LM

Input Voltage: 100-277V AC


FAQ

Q1: If I need mixed CCT product for one model, can I get the whole quantity price?
A1: Yes, you can.

Q2: How many panel lights do you manufacturing a month?
A2: Genarally speaking ,we can produce 6000-8000 pcs panels per month.

Q3: What would you do if the products stop working within the warranty period?
A3: If the products failed by normal using,we’ll return you a new one at all cost by us.

Q4: when can get one sample for test?
A4: Only three working days after your payments.

Q5: Is your panel color temperature tunnable?
A5: No.

Q6: Is your Light Guide Plate lasered?
A6: Lasered.

Q7: What CCT do you have with DLC?
A7: 4000K and 5000K.

Q8: What kind of your standard package looks like?
A8: pcs packed/carton for standard package.

Q9: Could I install tubes in your troffer?
A9: No,they don’t support.





595x1195mm LED Troffer
The OKT 595x1195mm LED Troffer Lights reach up to 100 lumens per watt in 200-240V AC input option. It is a well-designed, lay-in ceiling troffer fixture for new construction applications or retrofiting existing fluorescent troffer light fixtures, widely used in office spaces, major retail stores, education, government, healthcare, and hospitality.

Performance Summary


Model: TR24E-DH-XXX

Wattage: 50W

Efficacy: 100 lm/w

Luminous Flux: 5000LM

200-240V AC input

CRI: Ra>80

PF: >0.9

LED Lifetime: >50,000H L70 minimum

Materials: Aluminum

Mounting: recessed

Dimensions: L 1195 x W 595 x H 100 mm

5 years limited warranty
