40W New Construction LED Commercial Downlight

40W New Construction LED Commercial Downlight

Model No
CPS-D40W-35T
Price
Get Latest Price
Get the latest price
Quantity Needed:
Pieces
E-mail:

Downloads

Brochures CP Series



Brochures



Data Sheet CPS CCT Adjustable



Data Sheet



Installation CP4-D10W-XXX



Installation Instruction



IES Files CP4-40W-40T Round Trim



IES Files

4 inch Round Trim

IES Files CP6-40W-40T Round Trim



IES Files

6 inch Round Trim

IES Files CP8-40W-40T Round Trim





IES Files

8 inch Round Trim

IES Files CP10-40W-40T Round Trim





IES Files

10 inch Round Trim

IES Files CP4-D40W-30W-C 4inch Round wall wash trim



IES Files

4inch Round Wall Wash Trim

IES Files CP6-D40W-30W-C 6inch Round wall wash trim



IES Files

6inch Round Wall Wash Trim

IES Files CP4-40W-40T Square Trim





IES Files

4 inch Square Trim

IES Files CP6-40W-40T Square Trim


IES Files

6 inch Square Trim




3200lm New Construction LED Commercial Downlight
OKT's 40W Split LED Commercial Downlight series have been optimized to the third generation. The innovative separable design of junction box and housing makes it more flexible,the split led downlight fixture can fulfill a wide range of lighting needs. Easy-fit installation comes from adjustable spring-action housing clips. It is designed and engineered for recessed applications, which is suitable for commercial and public places and elegantly decorates the ambience, such as shopping mall, hospital, airport, hotel lobby, etc.

Performance summary

CPS-D40W-35T

Wattage: 40W

Efficacy: 80LM/W

Lumens: 3200 LM

CRI: Ra>80

PF: >0.9

LED Lifetime: >50,000H L70 minimum

Dimming: 0-10V

Tested Dimmers: Lutron ® Diva-Dvtv, Leviton ® IP-710-D

Materials: Aluminum haze trim with white trim ring

Mounting: recessed


Features

UL, CUL, Energy Star(Pending) and Damp Rated

CCT adjustable option by dip switch

Split design of led light engine and trim, one engine allows for seamless integration of multiple trim options

Trim sizes: 4", 6", 8" and 10"

Trim types: round, square and wall wash

Simple Installation with spring-action housing clips

Integrated J-Box for direct wire eliminated recessed can, perfect and economic solution for new construction applications.

5 years limited warranty

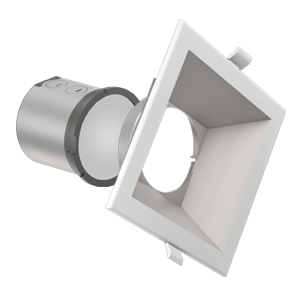

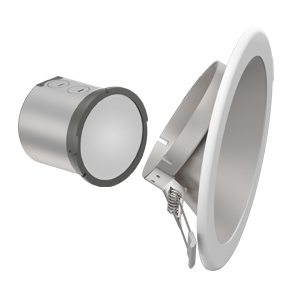

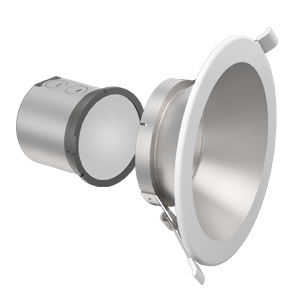

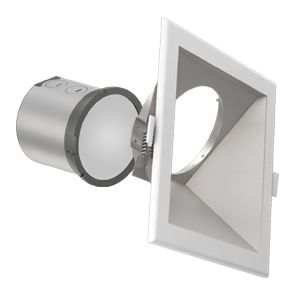

Split Design Of Engine And Trim
One engine allows for seamless integration of multiple trim options.

Round


4" 6" 8" 10"

>>>>>>>>>



Round

Wall wash

4" 6"

>>>>>>>>>



Square


4" 6"

>>>>>>>>>



Square

Wall wash

4" 6"

>>>>>>>>>




Trims


 4" Round Trim

Mounting Diameters: 4.7"- 5.2"

 6" Round Trim

Mounting Diameters: 6"-7.3"

 8" Round Trim

Mounting Diameters: 7.4"- 8.9"

 10" Round Trim

Mounting Diameters: 9.5"- 10.8"

-

  4" Square Trim

Mounting Diameters: 5.3"- 6"

  6" Square Trim

Mounting Diameters: 6"-7.3"

  4" Square Wall Wash

Mounting Diameters: 5.3"- 6"

Tilt:15-20°

  6" Square Wall Wash

Mounting Diameters: 6"- 7.3"

Tilt:15-20°

-


4" Round Wall Wash

Mounting Diameters: 5.3"-6"

Tilt:15-20°


6" Round Wall Wash

Mounting Diameters: 6"-7.3

Tilt:15-20°


Housing

 4“ Housing

Hole Diameter: 4.25"

 6“ Housing

Hole Diameter: 6.25"

 8" Housing

Hole Diameter: 7.87"
