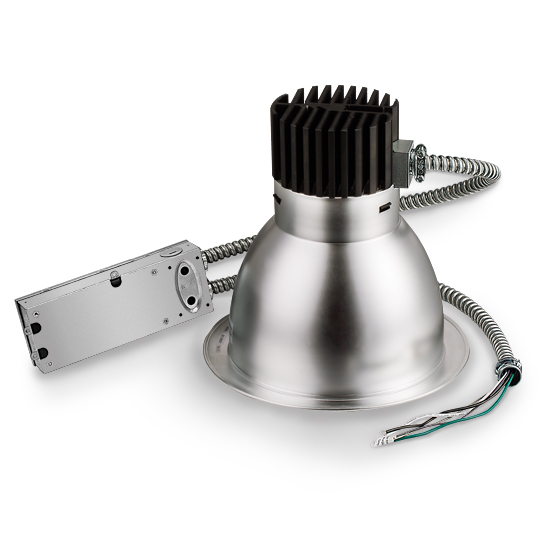

347V 18W Commercial LED Downlight

347V 18W Commercial LED Downlight

Model No
CES-18W-XXX-347
Price
Get Latest Price
Get the latest price
Quantity Needed:
Pieces
E-mail:

Downloads


347V 18W Commercial LED Downlight
The OKT 347V 18W Commercial LED Downlights delivers high lumens of exceptional 80+ CRI. 110-347VAC operation with included 0~10V dimmable constant current LED driver. It can replace for most manufacturers incandescent, CFL or H.I.D. fixtures.

Performance summary

Models: CES-18W-XXE-347

Wattage: 18W

Efficacy: 88LM/W

Lumens: 1584LM

CCT: 3000K,3500K,4000K and 5000K

Input Voltage: 110-347VAC

CRI: Ra>80

PF: >0.9

LED Lifetime: >50,000H L70 minimum

Dimming: 0-10V

Tested Dimmers: Lutron ® Diva-Dvtv, Leviton ® IP-710-D

Materials: Aluminum haze trim with white trim ring

Mounting: recessed


Features

UL, CUL, Energy Star and Damp Rated

Split design of led light engine and trim,  one engine

allows for seamless integration of multiple trim options

Trim sizes: 6", 8"

5 years limited warranty




Split Design Of Engine And Trim
One engine allows for seamless integration of multiple trim options.
6" 18W

51° Beam Angle

>>>>>>>>

>>>

8" 18W

35° Beam Angle

>>>>>>>>

>>



Trims


 6" Trim

Mounting Diameters: 6"-6.7"

 8" Trim

Mounting Diameters: 7.7"-8.4"


Housing

 6" Housing

Hole Diameter: 6.37"

 8" Housing

Hole Diameter: 7.72"
