54W Commercial LED Downlight

54W Commercial LED Downlight

Model No
CES-54W-XXX
Price
Get Latest Price
Get the latest price
Quantity Needed:
Pieces
E-mail:

Downloads

Brochure CE6-18W-XXX



Brochures



Data Sheet  CES-18W-XXX Standard Version



Data Sheet



Installation LG2-DM-XXX



Installation Instruction



LM79 Report  C8-54W-XX



LM79 Report



IES File  C8-D54W-3CE



IES Files

8 inch

IES File C10-D54W-XXX



IES Files

10 inch

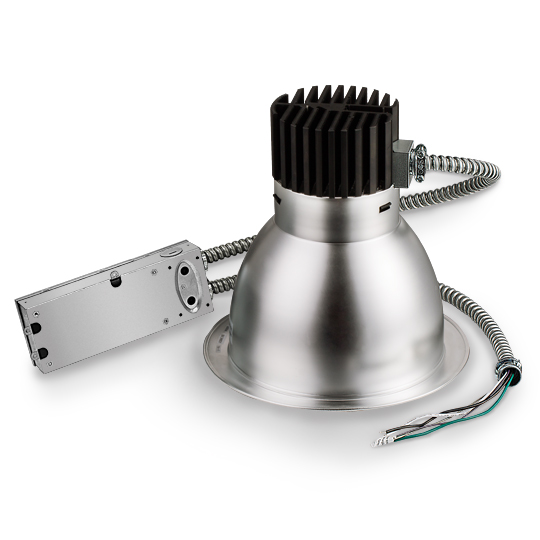

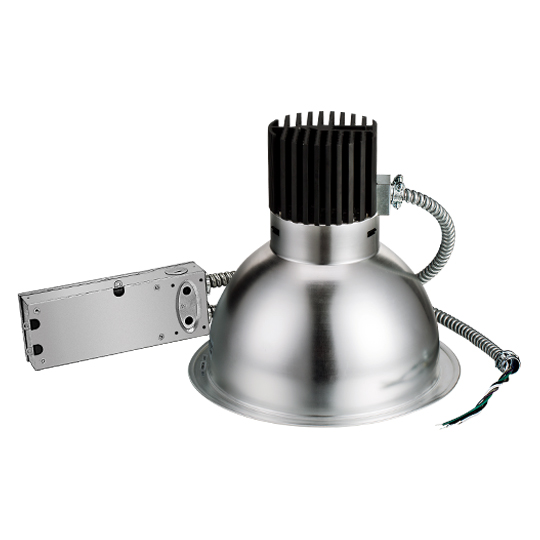

4300lm Retrofit Commercial Downlight
OKT 54W Commercial LED Downlight delivers high lumens of exceptional 80+ CRI, Lifetime 50000H with 3000K, 4000K, 5000K ES color temperatures options.100-277 VAC operation with 0~10V dimmable constant current LED driver. This energy-efficient LED light can replace for most manufacturers incandescent, CFL or H.I.D. fixtures. The retrofit LED downlight for installation in all compatible recessed housings found in hotel, office spaces, major retail stores, education facilities, government buildings, hospitals etc.

Performance summary

Models: CES-54W-XXE

Wattage: 54W

Efficacy: 80LM/W

Lumens: 4320LM

CCT: 3000K,3500K,4000K and 5000K

Input Voltage: 100-277VAC

CRI: Ra>80

PF: >0.9

LED Lifetime: >50,000H L70 minimum

Dimming: 0-10V

Tested Dimmers: Lutron ® Diva-Dvtv, Leviton ® IP-710-D

Materials: Aluminum haze trim with white trim ring

Mounting: recessed


Features

UL, CUL, Energy Star and Damp Rated

100-347V AC Input option

Split design of led light engine and trim,  one engine allows for seamless integration of multiple trim options

Trim sizes: 8",10"

5 years limited warranty



Split Design Of Engine And Trim
One engine allows for seamless integration of multiple trim options.
8" 54W

53° Beam Angle

>>>>>>>>



10" 54W

59° Beam Angle

>>>>>>>>

>
