10W J-box LED Lights

10W J-box LED Lights

Model No
CPS-D10W-XXX
Price
Get Latest Price
Get the latest price
Quantity Needed:
Pieces
E-mail:

Downloads

Brochures CP Series



Brochures



Data Sheet CPS



Data Sheet



Installation CP4-D10W-XXX



Installation Instruction



LM79 Report  CP4-D10W-XXX



LM79 Report



10W J-box LED Lights
OKT’s 10 Watts J-box led lights series have been optimized to the third generation. The innovative separable design of junction box and housing make more flexible and considerate. Energy Star certified for 4”, 6″and 8″ 10" configurations. Easy-fit installation with adjustable spring-action housing clips.junction box led lights is designed and engineered for recessed applications, which is suitable to commercial and public places and elegantly decorates the ambient, such as shopping mall, hospital, airport, hotel lobby, etc.

Performance Summary

Model: CPS-D10W-XXX

Efficacy: 75 LM/W

Luminous Flux: 750 LM

120-347VAC Input

CRI: Ra>80

PF: >0.9

LED Lifetime: >35,000H L70 minimum

Dimming: 1-10V

Tested Dimmers: Lutron ® Diva-Dvtv, Leviton ® IP-710-D

Materials: Aluminum haze trim with white trim ring

Mounting: Recessed


Features

UL,CUL , Energy Star, IC and Damp Rated

CCT adjustable option by dip switch (3000K, 4000K, 5000K)

110-277VAC Input Option

Split design of led light engine and trim,  one engine allows for seamless integration of multiple trim options

Trim sizes: 4", 6", 8" and 10"

Trim types: round, square and wall wash

Simple Installation with spring-action housing clips

Integrated J-Box for direct wire eliminated recessed can, perfect and economic solution for new construction applications.

5 years limited warranty

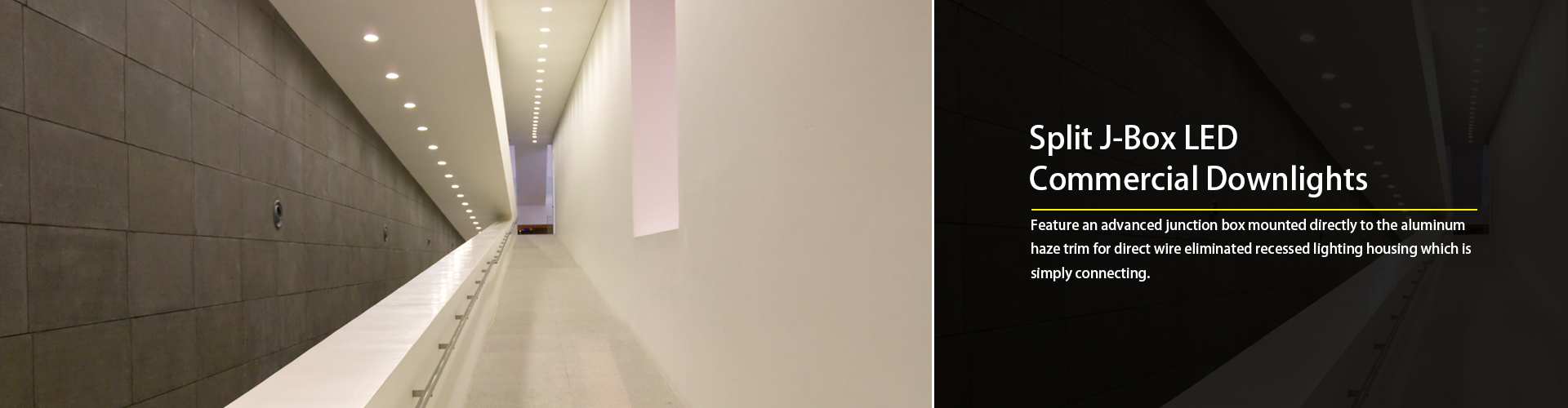

Split Design Of Engine And Trim
One engine allows for seamless integration of multiple trim options.
Round


4" 6" 8" 10"

>>>>>>>>


Round

Wall Wash

4" 6"

>>>>>>>>


Square


4" 6"

>>>>>>>>


Square

Wall wash

4" 6"

>>>>>>>>





Need more ?  Please fill out the following form, we OKT sales representative will contact you within 12 hours.  Thank you!



Trims


 4" Round Trim

Mounting Diameters: 4.7"- 5.2"

 6" Round Trim

Mounting Diameters: 6"-7.3"

 8" Round Trim

Mounting Diameters: 7.4"- 8.9"

 10" Round Trim

Mounting Diameters: 9.5"- 10.8"

-

  4" Square Trim

Mounting Diameters: 5.3"- 6"

  6" Square Trim

Mounting Diameters: 6"-7.3"

  4" Square Wall Wash

Mounting Diameters: 5.3"- 6"

Tilt:15-20°

  6" Square Wall Wash

Mounting Diameters: 6"- 7.3"

Tilt:15-20°

-


4" Round Wall Wash

Mounting Diameters: 5.3"-6"

Tilt:15-20°


6" Round Wall Wash

Mounting Diameters: 6"-7.3

Tilt:15-20°


Housing

 4“ Housing

Hole Diameter: 4.25"

 6“ Housing

Hole Diameter: 6.25"

 8" Housing

Hole Diameter: 7.87"
