4ft Vertical Linear LED Luminaire

4ft Vertical Linear LED Luminaire

Model No
LV4
Price
Get Latest Price
Get the latest price
Quantity Needed:
Pieces
E-mail:

Downloads

Brochure  LV4-DM-XXU





Brochure

Data Sheet  LV4 Internal Driver

Internal Driver

Data Sheet  LV4 External Driver



Data Sheet

External Driver

Installation  LV4 internal driver



Installation Instruction

Internal Driver

Installation Instruction LV4 External Driver



Installation Instruction

External Driver

IES File  LV4-I40DD Internal Driver

Internal Driver

Diffuser - Direct Lighting

IES Files - LV4-ITWUC Internal Driver, Indirect Lighting
IES File

Internal Driver

Indirect Lighting

IES Files  LV4-ETWAD-5000K External Driver
IES Files

External Driver

Diffuser - Direct & indirect

IES Files - LV4-E30AD 70% down 30% up
IES Files

External Driver

Diffuser - 70% Down 30% Up

REVIT Files
Revit Files

April,2021







4ft Vertical Linear

The LV series suspended linear led lighting fixture combines brilliant design and intuitive engineering to deliver unprecedented performance. It is a distinct statement in any workspace. Most of our customers have been struggling with inventory control, thanks to the CCT adjustable technology, you can now fulfill more orders with fewer SKUs!

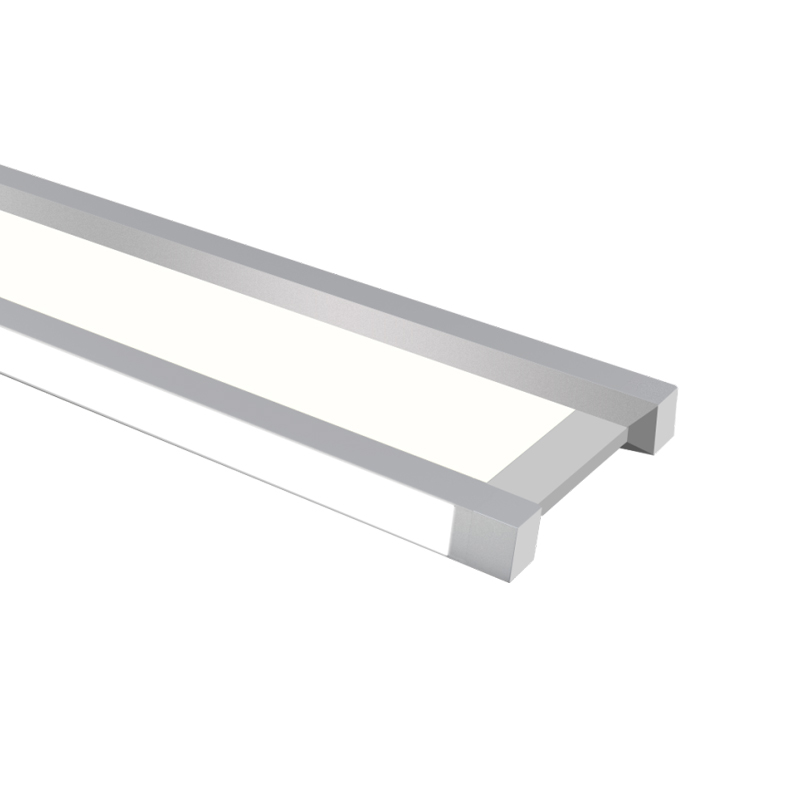

√   It is integrated with ultra-thin semi-transparent vertical optics, enveloped in a signature sloping silhouette where the frame meets the optics,precisely controlled optimal direct indirect distributions.


;

Visual Comfort

We strive to challenge the highest visual comfort standard by offering multiple professional lenses..


√   Diffuser: Elevate your project with low glare rating possible.

√    Louver: Precise distribution can better decor your space without any concerns.

Powerful

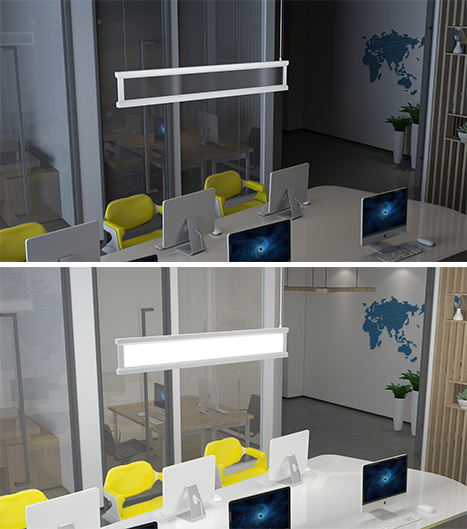

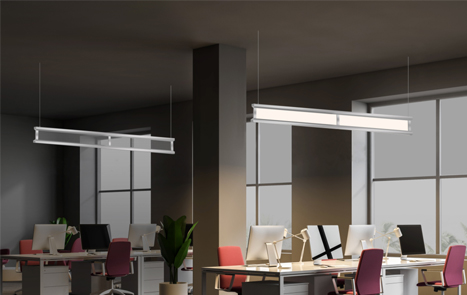

When suspended, the LV Series can provide smooth direct

 or indirect distribution, allowing for wider spacing between

fixtures and better ceiling light uniformity.

The magic of CCT adjustable

Most of our customers have been struggling with inventory control, thanks to the CCT adjustable technology, you can now fulfill more orders with fewer SKUs!

√  Let you choose up to different 8 color temperatures

√  Dual Circuits output, adjust CCT with 0-10V dimming system



UGR<19 / CRI 90+ Options

The LV series delivers class-leading colour quality with a CRI of 90 and URG less than 19 that is unmatched in this type of technology






suspended led lighting fixtures



|  FAQS

Does this pendant light have uplight?

A1: Yes, uplight is optional.

Can it make continuous runs and how many pcs maximum?

A2: Yes, you could make multiple units connection by taking out one end-cap. Each power feed connections up to 40ft.

Can the driver be put into the ceiling?

A3: Yes, we have 2 driver mounting options for different ceiling system. For suspended ceiling, the driver can be fixed on the T-grid; while for drywall ceiling


Need more ?  Please fill out the following form, we OKT sales representative will contact you within 12 hours. Thank you!






Vertical Linear - Internal Driver
The LV series suspended linear led light fixture combines brilliant design and intuitive engineering to deliver unprecedented performance. It is a distinct statement in any workspace. Most of our customers have been struggling with inventory control, thanks to the CCT adjustable technology, you can now fulfill more orders with fewer SKUs!

It is integrated with ultra-thin semi-transparent vertical optics, enveloped in a signature sloping silhouette; where the frame meets the optics,precisely controlled optimal direct indirect distributions at a split of light between the direct surfaces below and the ambient area horizontal the fixture.


Performance Summary

Driver: Internal

Input Voltage: 110-277VAC

CRI: Ra>80

PF: >0.9

LED Lifetime: >50,000H L70 minimum

Dimming: 0-10V

Tested Dimmers: Lutron ® Diva-Dvtv, Leviton ® IP-710-D

Mounting: Suspending


Features

UL,cUL Listed, Damp Rated

Transparent vertical optics,enveloped in a ignature sloping silhouette

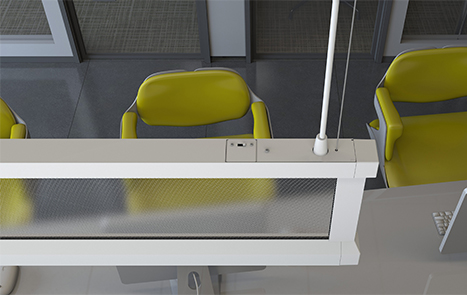

CCT adjustable: 3000K,3500K,4000K by dip switch

CRI 90+ options

Emergency or sensor options

Seamless continuous runs, up to 40' per power feed

Application flexibility, T-grid or dry ceiling compatible

5 years limited warranty

Multiple direct or indirect lighting distributions options


   Specification
Available in Diffuser and Louver Optics
suspended led linear lighting  Model: LV4-IXXXD

Driver: Internal

Wattage: 40W 4FT

Input voltage:110-277VAC

Efficacy: 100 lm/w, 1000lm/ft

Lighting distruction: Direct, indirect


Suspended Linear LED Lighting   Model: LV4-IXXXL

Driver: Internal

Wattage: 40W  4FT

Input voltage: 110-277VAC

Efficacy: 90 lm/w, 900lm/ft

Lighting distruction: Direct

UGR<19 option





Vertical Linear - External Driver
The LV series suspended linear led light fixture combines brilliant design and intuitive engineering to deliver unprecedented performance.It is a distinct statement in any workspace. Most of our customers have been struggling with inventory control, thanks to the CCT adjustable technology, you can now fulfill more orders with fewer SKUs!

It is integrated with ultra-thin semi-transparent vertical optics, enveloped in a signature sloping silhouette ;where the frame meets the optics,precisely controlled optimal direct indirect distributions at a split of light between the direct surfaces below and the ambient area horizontal the fixture.


Performance Summary

Driver: External

Input Voltage: 110-347VAC

CRI: Ra>80

PF: >0.9

LED Lifetime: >50,000H L70 minimum

Dimming: 0-10V

Tested Dimmers: Lutron ® Diva-Dvtv, Leviton ® IP-710-D

Mounting: Suspending


Features

UL,cUL Listed, Damp Rated

Transparent vertical optics, enveloped in a ignature sloping silhouette

CCT adjustable: 3000K,3500K,4000K by dip switch

CRI 90+ options

Emergency or sensor options

Seamless continuous runs, up to 40' per power feed

Application flexibility, T-grid or dry ceiling compatible

5 years limited warranty

Multiple direct or indirect lighting distributions options


   Specification
Available in Diffuser and Louver Optics


suspended linear led lighting fixtures  Model: LV4-EXXXD

Driver: External

Wattage: 45W 4FT

Input voltage: 110-347VAC

Efficacy: 100 lm/w, 1125lm/ft

Lighting distruction: Direct, indirect, direct&indirect

Wattage selectable(100%, 75%, 50%)

led linear pendant lighting   Model: LV4-EXXXL

Driver: External

Wattage: 45W  4FT

Input voltage: 110-347VAC

Efficacy: 90 lm/w, 1010lm/ft

Lighting distruction: Direct, direct&indirect

Wattage selectable(100%, 75%, 50%)

UGR<19 option






Pendant Accessory for Dry Ceiling

4" Round Canopy
  4" Square Canopy
 2" Round Canopy
 2" Square Canopy

-

Pendant Accessory for Drop Ceiling

T-grid Hanger(Feed) + 4" Round Canopy
 T-grid Hanger(Feed) + 4" Square Canopy
T-grid Hanger(Non-Feed) + 2" Round Canopy
T-grid Hanger(Non-Feed) + 2" Square Canopy
