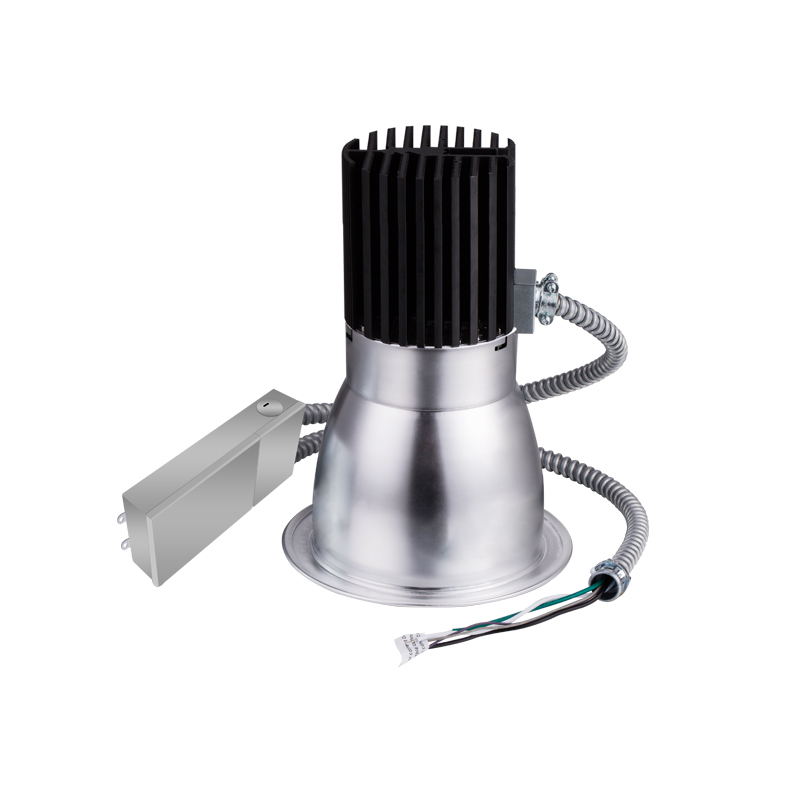

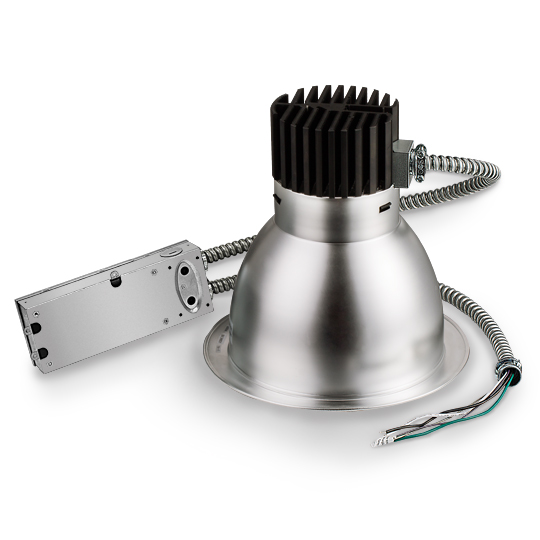

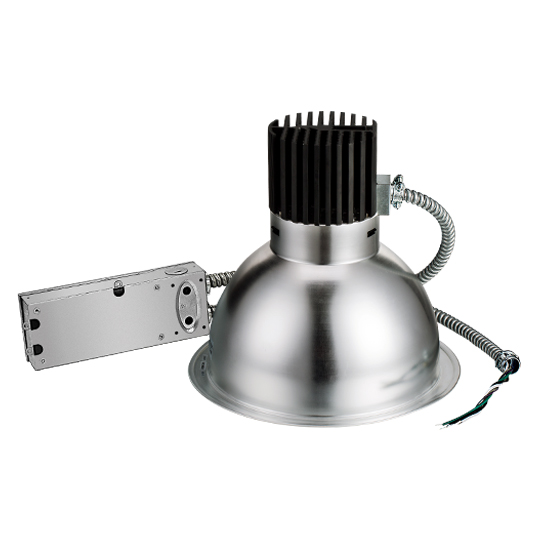

347V 80W Commercial LED Downlight

347V 80W Commercial LED Downlight

Model No
CES-80W-XXX
Price
Get Latest Price
Get the latest price
Quantity Needed:
Pieces
E-mail:
Download
Brochure CE6-18W-XXX



Data Sheet



Installation  CE6-18W-XXE





Installation Instruction



IES Files CE8-80W-XXX



IES Files

8 inch


6400lm Retrofit Commercial Downlight
OKT 80W Commercial LED Downlight delivers high lumens of exceptional 80+ CRI, Lifetime 50000H with 3000K, 4000K, 5000K color temperatures options.110-347 VAC operation with 0~10V dimmable constant current LED driver. This energy-efficient LED light can replace for most manufacturers incandescent, CFL or H.I.D. fixtures. The retrofit LED downlight for installation in all compatible recessed housings found in hotel, office spaces, major retail stores, education facilities, government buildings, hospitals etc.

Performance summary

Models: CES-80W-XXE

Wattage: 80W

Efficacy: 85LM/W

Lumens: 6800LM

CCT: 3000K,3500K,4000K and 5000K

Input Voltage: 110-347VAC

CRI: Ra>80

PF: >0.9

LED Lifetime: >50,000H L70 minimum

Dimming: 0-10V

Tested Dimmers: Lutron ® Diva-Dvtv, Leviton ® IP-710-D

Materials: Aluminum haze trim with white trim ring

Mounting: recessed


Features

UL, CUL, Damp Rated

Split design of led light engine and trim, one engine allows for seamless integration of multiple trim options

Trim sizes: 8", 10"

5 years limited warranty


Split Design Of Engine And Trim
One engine allows for seamless integration of multiple trim options.
8" 80W

52° Beam Angle

>>>>>>>>

>>>>>>>>

10" 80W

52° Beam Angle

>>>>>>>>

>>



Trims


 8" Trim

Mounting Diameters: 7.7"-8.4"

 10" Trim

Mounting Diameters: 10"-10.7"

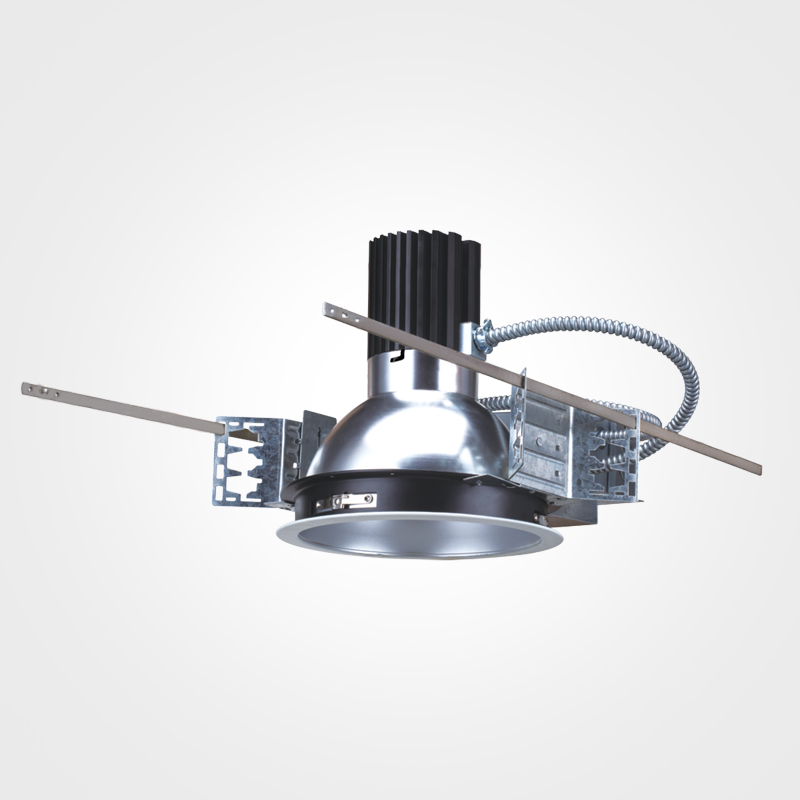

Housing

 8" Housing

Hole Diameter: 7.72"

 10" Housing

Hole Diameter: 9.54"
