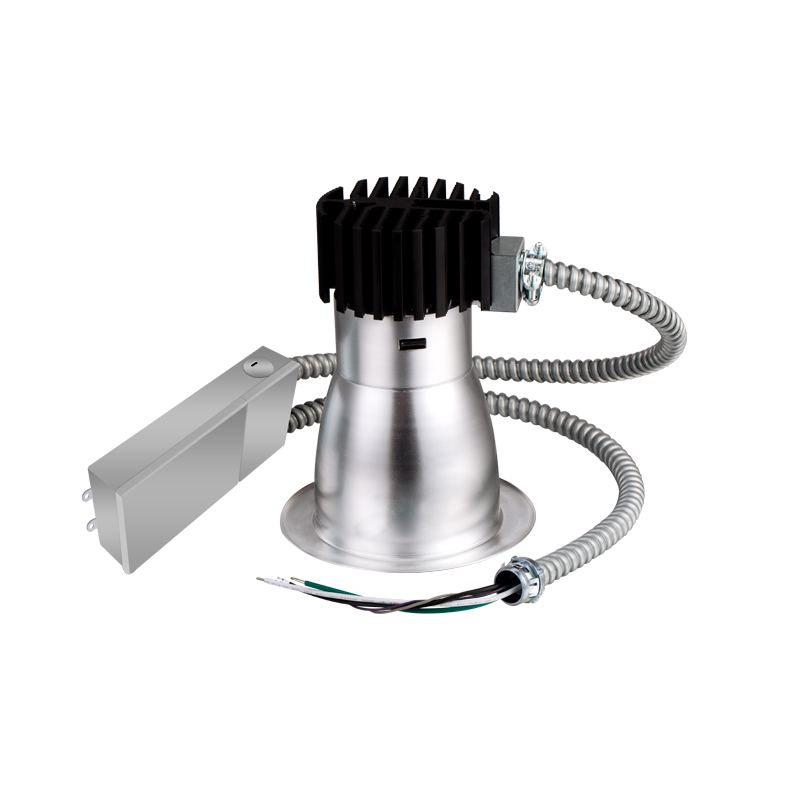

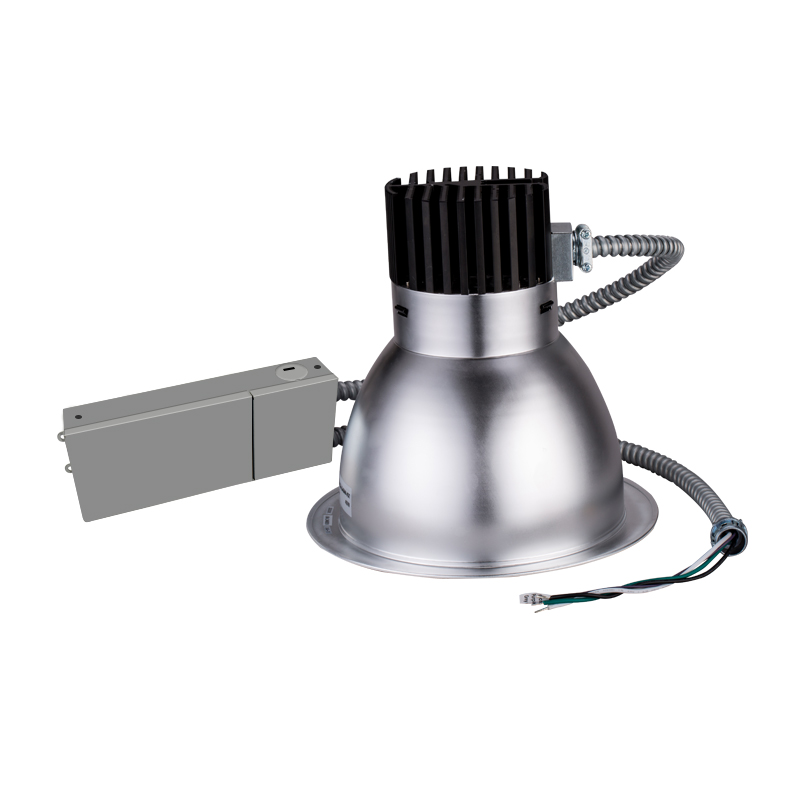

27W Commercial LED Downlight

27W Commercial LED Downlight

Model No
CES-27W-XXX
Price
Get Latest Price
Get the latest price
Quantity Needed:
Pieces
E-mail:

Downloads

Brochure CE6-18W-XXX



Brochures



Data Sheet  CES



Data Sheet



Installation  CE6-18W-XXE



Installation Instruction

LM79 Report  C4-D27W-40E





LM79 Report

4 inch

IES File   C4-D27W-3CE



IES Files

4 inch

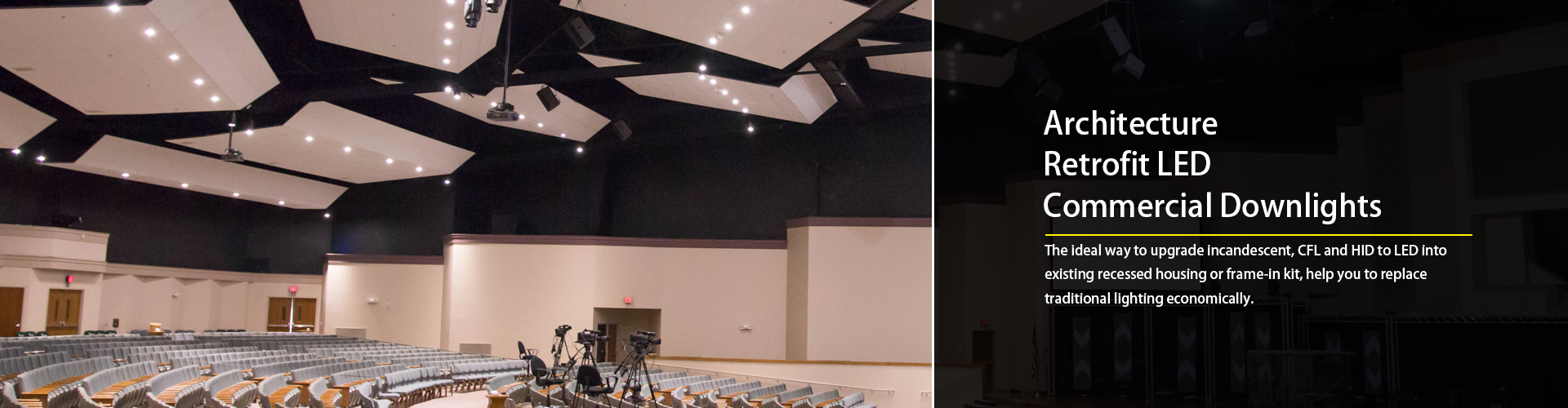

2100lm Retrofit Commercial Downlight
The OKT 27W Commercial LED Downlight delivers high lumens of exceptional 80+ CRI, Lifetime 50000H with 3000K, 3500K, 4000K and 5000K Energy star color temperatures options. 100-277V AC or 110-347V AC operation with included 0~10V dimming constant current LED driver.This energy-efficient LED light can replace for most manufacturers incandescent, CFL or H.I.D. fixtures. The retrofit downlight for installation in all compatible recessed housings found in hotel, office spaces, major retail stores, education facilities, government buildings, hospitals etc.

Performance Summary

Models: CES-27W-XXE

Wattage: 27W

Efficacy: 80LM/W

Lumens: 2160LM

CCT: 3000K,3500K,4000K and 5000K

Input Voltage: 100-277VAC or 110-347VAC

CRI: Ra>80

PF: >0.9

LED Lifetime: >50,000H L70 minimum

Dimming: 0-10V

Tested Dimmers: Lutron ® Diva-DVTV, Leviton ® IP-710-D

Materials: Aluminum haze trim with white trim ring

Mounting: Recessed


Feature

UL, CUL, Energy Star and Damp Rated

CCT Adjustable Option By Dip Switch ( 3000K, 3500K and 4000K)

Split design of led light engine and trim,  one engine

allows for seamless integration of multiple trim options

Trim size Options: 4", 6", 8" and 10"

5 Years Limited Warranty




Split Design Of Engine And Trim
One engine allows for seamless integration of multiple trim options.

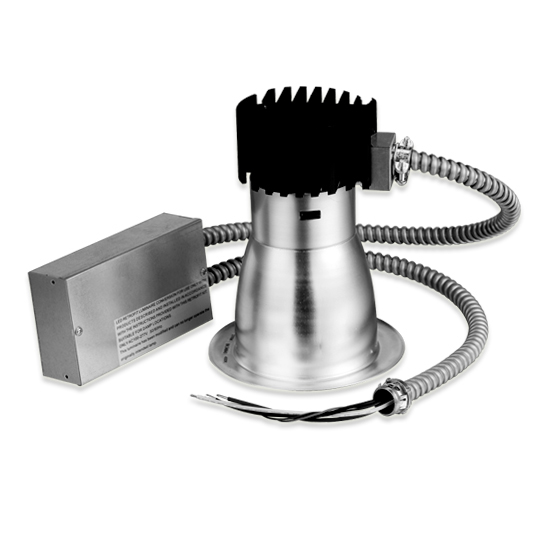

4" 27W

40° Beam Angle

>>>>>>>>


led commercial downlight

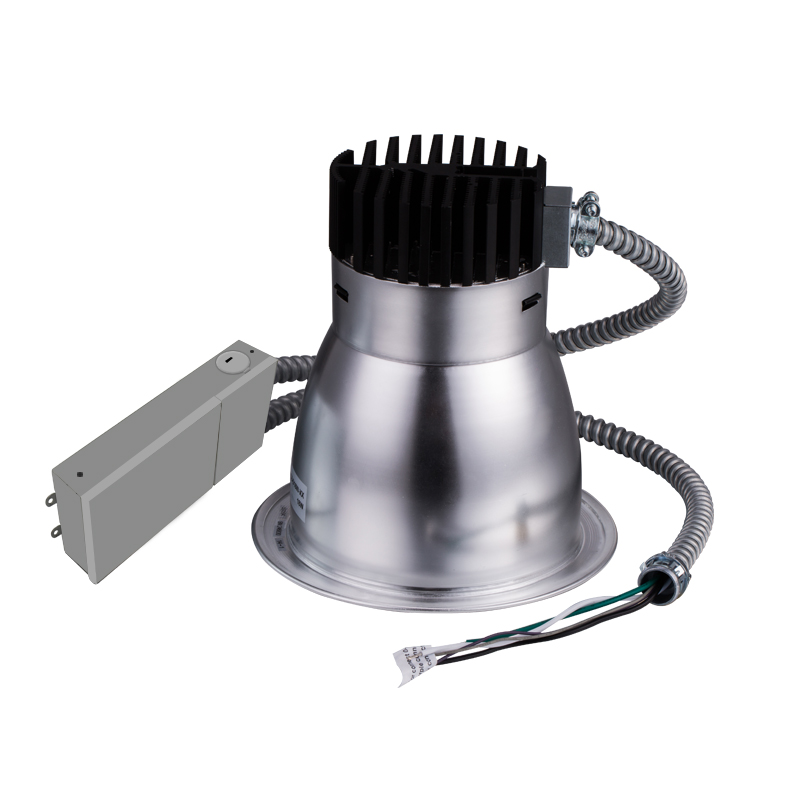

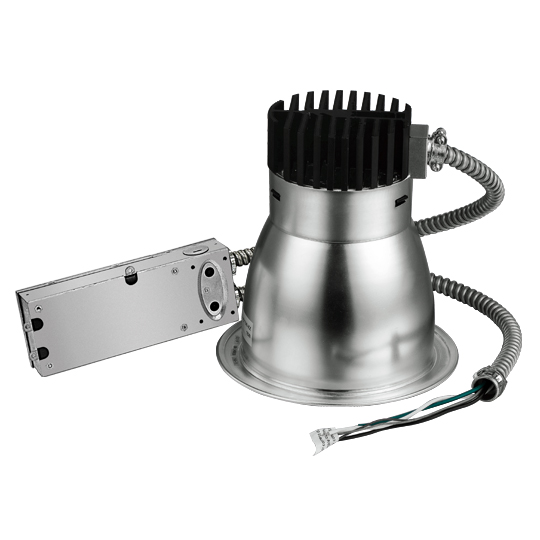

6" 27W

52° Beam Angle

>>>>>>>>


retrofit recessed downlight

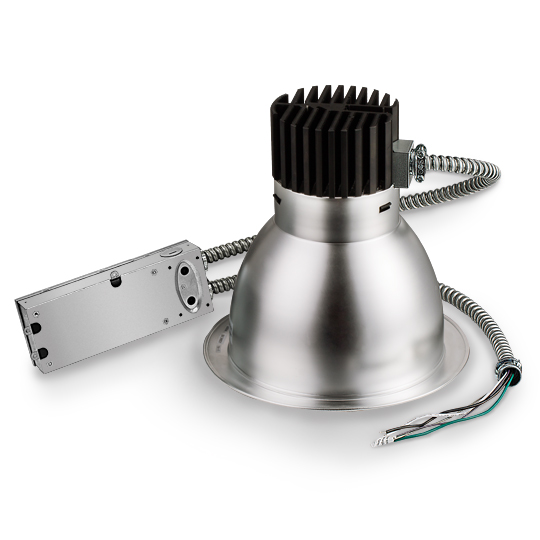

8" 27W

44° Beam Angle

>>>>>>>>

led recessed downlight retrofit

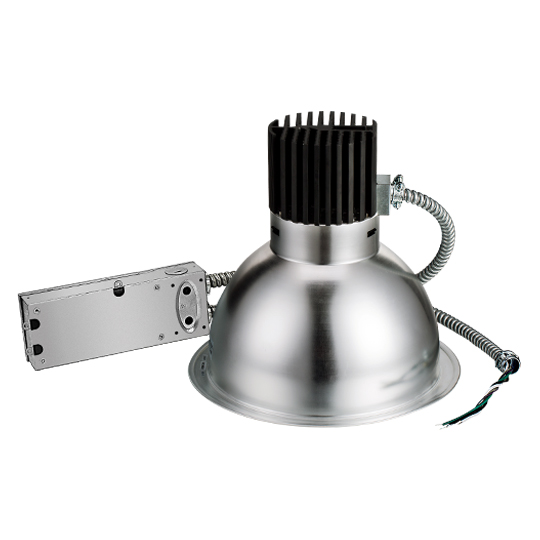

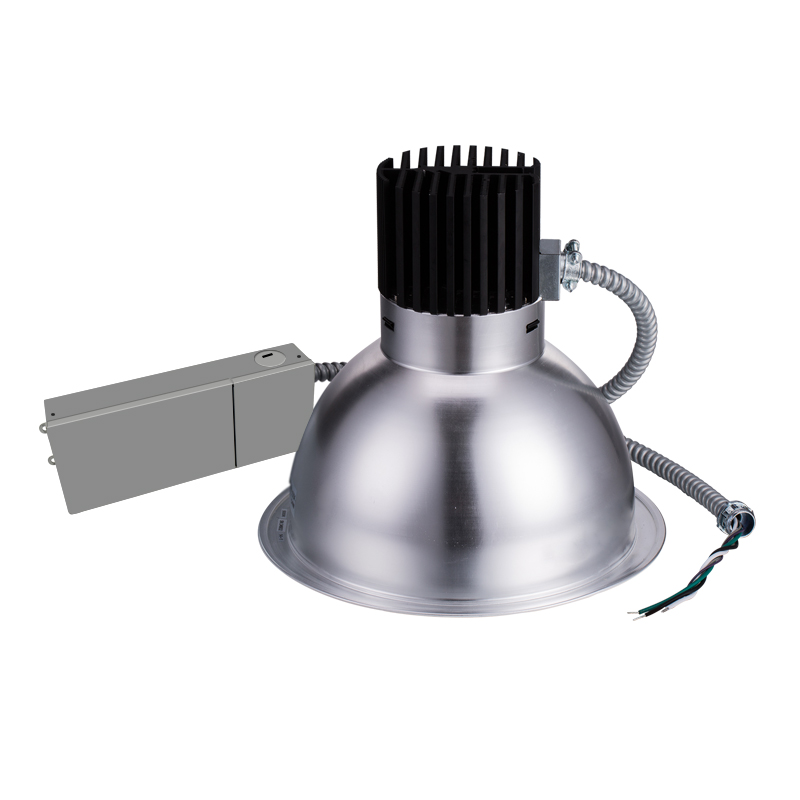

10" 27W

55° Beam Angle

>>>>>>>>


commercial led downlight retrofit







Noted: it is the retrofit kit version. Need an additional housing fixture to install.

Optional Housing

 4" Housing

Hole Diameter: 4.81"

 6" Housing

Hole Diameter: 6.37"

 8" Housing

Hole Diameter: 7.72"

 10" Housing

Hole Diameter: 9.54"
