recessed linear led light fixture

Heritage

We understand recessed lighting, our approach to modern lighting products has always been different from other traditional manufacturers; we believe the recessed luminaire shall bring elegant atmosphere and ultimate flexibility together

Full Range To Meet Your Needs

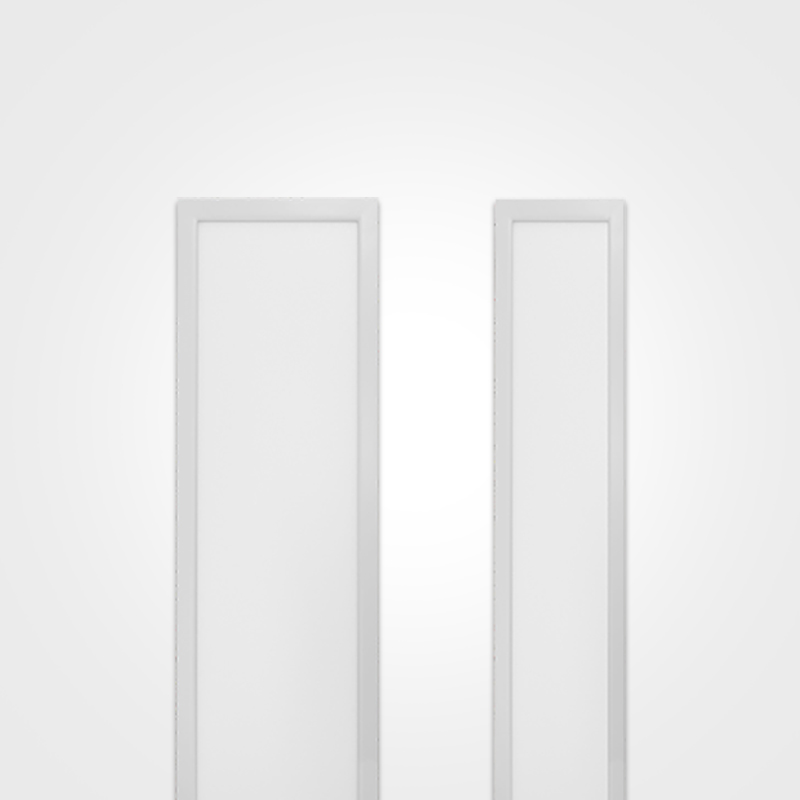

The revolutionary LR series features popular 4”, 6” width and length up to 8’, it provides powerful lines in any applications to enhance architectural styling or add a unique flair to the interior design of a space.

Available in 2’,4' and 8'

Narrow frame-providing uniform and broad illumination

CCT Select - Put flexibility at your fingertips

By using Dip switches located on the back, you can choose from three

color temperatures 3000K, 3500K and 4000K，creating your optimal

lighting experience. you can now fulfill more orders with fewer SKUs!

Installer-friendly, Works with most ceiling type

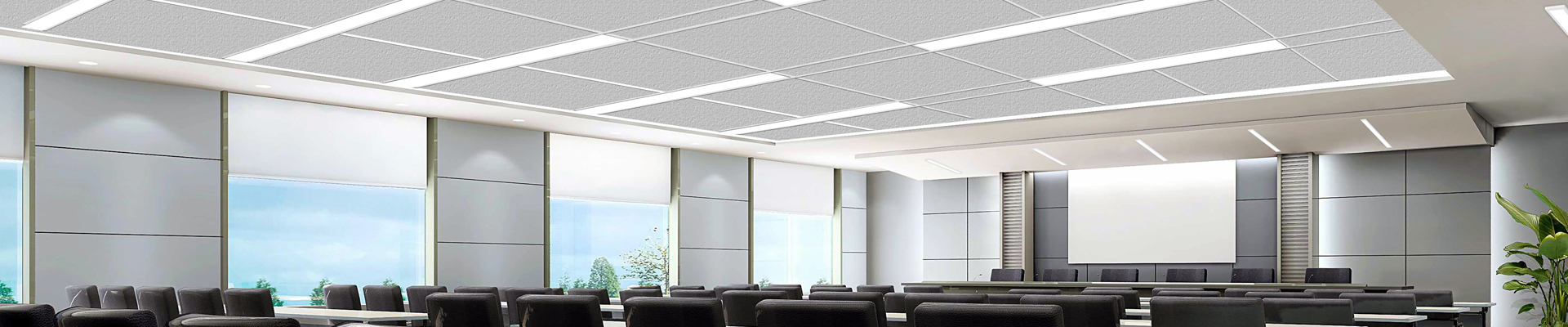

It will be your go-to-choice for offices, schools, hospital, corridor light industrial spaces or anywhere stylish lines of light are desired.

architectural Recessed Lighting

recessed led linear light

4"x2' Recessed Linear - External Driver

This LR series 4"x2' luminaire is an elegant recessed linear fixture family designed to please wholesalers, architects, contractors and designers. It can create pleasing illumination. A selectable slide switch comes standard with three selectable color temperatures, providing the flexibility to adapt to the changing needs of the space, setting, or environment. It will be your go-to-choice for offices,schools, hospital, corridor light industrial spaces or anywhere stylish lines of light are desired. It is ideal for new construction as well as renovations.

Performance summary

Model: LR24-XXT

Wattage: 20W

Efficacy: 850LM/FT

Lumens: 1700 LM

Input Voltage: 120-277VAC

Beam Angle: 110°

CRI: Ra>80

PF:>0.9

LED Lifetime: >50,000H L70 minimum

Dimming: 0-10V

Tested Dimmers: Lutron ® Diva-Dvtv, Leviton ® IP-710-D

Features

UL, cUL Listed, Damp Rated

Ultra thin profile with external driver

CCT Adjustable: 3000K,3500K and 4000K by dip switch

Provides powerful lines in any applications

Easy and quick recessed installation

Works with most ceiling types

Emergency or sensor function options

5 years limited warranty

4"x4' Recessed Linear - External Driver

This LR series 4"x4' luminaire is an elegant recessed linear led light fixture family designed to please wholesalers, architects, contractors and designers. It can create pleasing illumination. A selectable slide switch comes standard with three selectable color temperatures, providing the flexibility to adapt to the changing needs of the space, setting, or environment. It will be your go-to-choice for offices,schools, hospital, corridor light industrial spaces or anywhere stylish lines of light are desired. It is ideal for new construction as well as renovations.

Performance summary

Model: LR44-XXT

Wattage: 40W

Efficacy: 900LM/FT

Lumens: 3600LM

Input Voltage: 120-277VAC

Beam Angle: 110°

CRI: Ra>80

PF:>0.9

LED Lifetime: >50,000H L70 minimum

Dimming: 0-10V

Tested Dimmers: Lutron ® Diva-Dvtv, Leviton ® IP-710-D

Features

UL, cUL Listed, Damp Rated

Ultra thin profile with external driver

CCT Adjustable: 3000K,3500K and 4000K by dip switch

Provides powerful lines in any applications

Easy and quick recessed installation

Works with most ceiling types

Emergency or sensor function options

5 years limited warranty

4"x8' Recessed Linear - External Driver

This LR series 4"x8' luminaire is an elegant led linear recessed light family designed to please wholesalers, architects, contractors and designers. It can create pleasing illumination. A selectable slide switch comes standard with three selectable color temperatures, providing the flexibility to adapt to the changing needs of the space, setting, or environment. It will be your go-to-choice for offices,schools, hospital, corridor light industrial spaces or anywhere stylish lines of light are desired. It is ideal for new construction as well as renovations.

Performance summary

Model: LR84-XXT

Wattage: 80W

Efficacy: 900LM/FT

Lumens: 7200LM

Input Voltage: 120-277VAC

Beam Angle: 110°

CRI: Ra>80

PF:>0.9

LED Lifetime: >50,000H L70 minimum

Dimming: 0-10V

Tested Dimmers: Lutron ® Diva-Dvtv, Leviton ® IP-710-D

Features

UL, cUL Listed, Damp Rated

Ultra thin profile with external driver

CCT Adjustable: 3000K,3500K and 4000K by dip switch

Provides powerful lines in any applications

Easy and quick recessed installation

Works with most ceiling types

Emergency or sensor function options

5 years limited warranty

6"x2' Recessed Linear - External Driver

This LR series 6"x2' luminaire is an elegant recessed linear fixture family designed to please wholesalers, architects, contractors and designers. It can create pleasing illumination. A selectable slide switch comes standard with three selectable color temperatures, providing the flexibility to adapt to the changing needs of the space, setting, or environment. It will be your go-to-choice for offices,schools, hospital, corridor light industrial spaces or anywhere stylish lines of light are desired. It is ideal for new construction as well as renovations.

Performance summary

Model: LR26-XXT

Wattage: 20W

Efficacy: 1000LM/FT

Lumens: 2000LM

Input Voltage: 120-277VAC

Beam Angle: 110°

CRI: Ra>80

PF:>0.9

LED Lifetime: >50,000H L70 minimum

Dimming: 0-10V

Tested Dimmers: Lutron ® Diva-Dvtv, Leviton ® IP-710-D

Features

UL, cUL Listed, Damp Rated

Ultra thin profile with external driver

CCT Adjustable: 3000K,3500K and 4000K by dip switch

Provides powerful lines in any applications

Easy and quick recessed installation

Works with most ceiling types

Emergency or sensor function options

5 years limited warranty

6"x4' Recessed Linear - External Driver

This LR series 6"x4' luminaire is an elegant recessed linear light fixture family designed to please wholesalers, architects, contractors and designers. It can create pleasing illumination. A selectable slide switch comes standard with three selectable color temperatures, providing the flexibility to adapt to the changing needs of the space, setting, or environment. It will be your go-to-choice for offices,schools, hospital, corridor light industrial spaces or anywhere stylish lines of light are desired. It is ideal for new construction as well as renovations.

Performance summary

Model: LR46-XXT

Wattage: 40W

Efficacy: 1000LM/FT

Lumens: 4000 LM

Input Voltage: 120-277VAC

Beam Angle: 110°

CRI: Ra>80

PF:>0.9

LED Lifetime: >50,000H L70 minimum

Dimming: 0-10V

Tested Dimmers: Lutron ® Diva-Dvtv, Leviton ® IP-710-D

Features

UL, cUL Listed, Damp Rated

Ultra thin profile with external driver

CCT Adjustable: 3000K,3500K and 4000K by dip switch

Provides powerful lines in any applications

Easy and quick recessed installation

Works with most ceiling types

Emergency or sensor function options

5 years limited warranty

6"x8' Recessed Linear - External Driver

This LR series 6"x8' luminaire is an elegant recessed slim led linear light family designed to please wholesalers, architects, contractors and designers. It can create pleasing illumination. A selectable slide switch comes standard with three selectable color temperatures, providing the flexibility to adapt to the changing needs of the space, setting, or environment. It will be your go-to-choice for offices,schools, hospital, corridor light industrial spaces or anywhere stylish lines of light are desired. It is ideal for new construction as well as renovations.

Performance summary

Model: LR86-XXT

Wattage: 80W

Efficacy: 1000LM/FT

Lumens: 8000 LM

Input Voltage: 120-277VAC

Beam Angle: 110°

CRI: Ra>80

PF:>0.9

LED Lifetime: >50,000H L70 minimum

Dimming: 0-10V

Tested Dimmers: Lutron ® Diva-Dvtv, Leviton ® IP-710-D

Features

UL, cUL Listed, Damp Rated

Ultra thin profile with external driver

CCT Adjustable: 3000K,3500K and 4000K by dip switch

Provides powerful lines in any applications

Easy and quick recessed installation

Works with most ceiling types

Emergency or sensor function options

5 years limited warranty
