COPA 3inch LED Downlights

COPA 3inch LED Downlights

Model No
CP3-10W-XXX, CP3-18W-XXX
Get Latest Price
Get the latest price
Quantity Needed:


Data Sheet COPA 3


Data Sheet


Brochures COPA 3




IES Files  CP3-18W-27E HEL-24°



IES Files

18W, CRI 80+, 24° beam angle

IES Files  CP3-18W-27E HEL-60°



IES Files

18W, CRI 80+, 60° beam angle

CP3 Installation Instruction



CP3 Installation Instruction

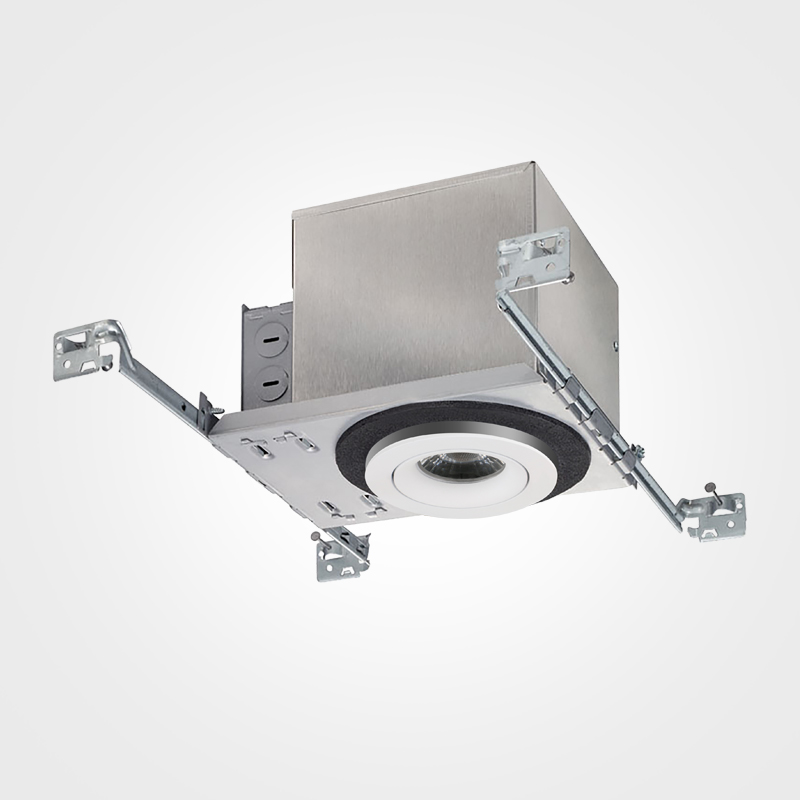

COPA 3” Downlights
Copa 3” with more trims, innovative LED lens, and dimming driver options provides maximum delivered lumens and optical performance through the optimization of thermal, optical, and LED science in a 3” aperture. It is best-in-class quality downlighting for retrofit or new construction applications. With industry-leading performance, it can provide a solution for any project - commercial, corporate and residential installations. Whatever your needs, there’s a perfect match for your project.


Performance Summary

Finish: White, Black

THD <20%

PF: >0.9

Color Temp: 3000K, 4000K

LED Lifetime: >50,000H L70 minimum

Trim type: Round, Square, Adjustable Round, Adjustable Square

Mounting: Recessed

UL,CUL and Damp Rated

5 years limited warranty



Quality - Powered by bridgelux high efficiency COB LED chip

Flexibility - Split design of led light engine, lens, trim and driver, seamless integration

Easy installation - Twist & Lock feature to connect all in a fast way

Excellence Heatsink - The temperature of all heatsinks are controlled at 60-70℃.

Compatibility – Optional Flicker-free TRIAC/120V or 0-10V/100-277V

True color - 90+ CRI, produces outstanding illumination

Widely used - Unique low profile and MR16 standard size design make them widely practical

LED Engine+Optics
Available in 10W and 18W
Input Power: 10W

CRI: 80+

Efficacy@3000K: 100 LM/W

Luminous Flux: 1000 LM

Beam Angle: 24°/60°

Input Power: 10W

CRI: 90+

Efficacy@3000K: 85 LM/W

Luminous Flux: 850 LM

Beam Angle: 24°/60°

Input Power: 18W

CRI: 80+

Efficacy@3000K: 100 LM/W

Luminous Flux: 1800 LM

Beam Angle: 24°/60°

Input Power: 18W

CRI: 90+

Efficacy@3000K: 90 LM/W

Luminous Flux: 1620 LM

Beam Angle: 24°/60°

Trims Options

   Round Trim

Cutout: Ø2.95" - 3.03"

   Square Trim

Cutout: Ø2.95" - 3.03"

   Adjustable Round Trim

Cutout: Ø2.83" - 2.95"

   Adjustable Square Trim

Cutout: Ø2.83" - 2.95"

Drivers Optics

  Driver for Retrofit

Dimension: L 7.56" x W 1.89" x H 1.38"

 Driver for New contruction

Hole Diameter: 3.03"
