Concept of T-Grid Linear
(US Patent)
√ Slim Profile：0.48" thickness, almost integrated to T-grid ceiling
√ Multiple Dimensions 2’,4’ and 8’ with versatile compatibility to various T-grids,including 9/16” flat, 9/16” slot, 9/16” interlude, 15/16” flat…
√ Up to 650 lm/ft, enlarging the lumen spread over the entire space
√ IC Rated：It has additional insulation materials either by code or design requirement for installation in suspended ceilings.
√ Precise Optics: Available in 4 professional distributions

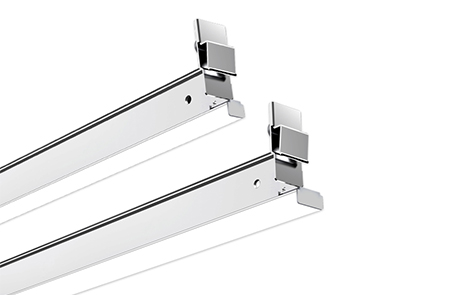

√ Innovative separable design of led module and T-grid bracket makes it more flexible. One T-grid bracket allows for seamless integration of multiple led modules with different CCT or types with easy and tool-free installation.

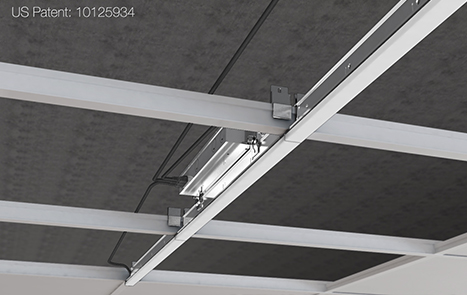

T-Grid LED can be installed in many configurations by replacing any
of the cross tees between the main runners of the suspended gridceiling system assembly, providing a flexible general lighting solution
for commercial and institutional environments such as offices,

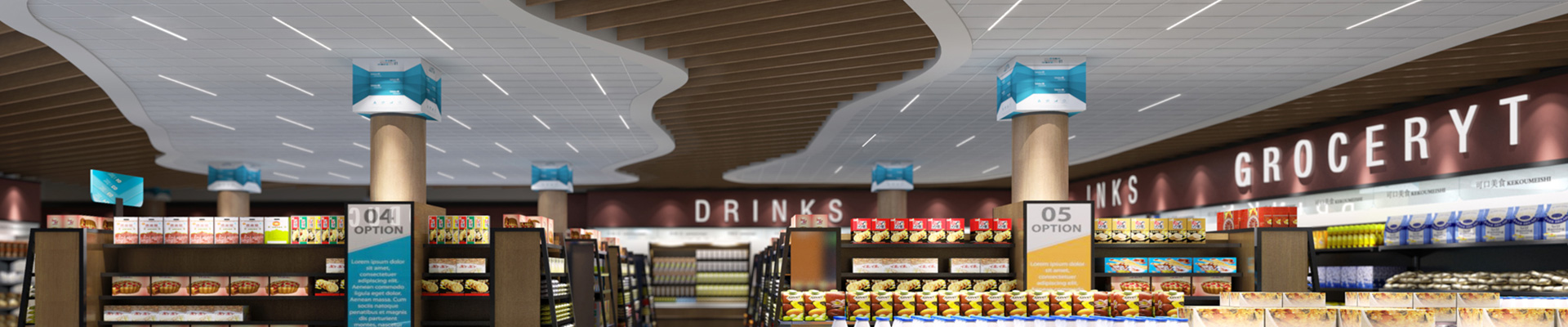

classrooms, retail and public space. Custom pattern such as L , T ,
+ , 口 etc. .

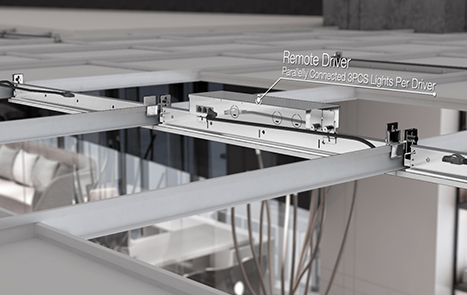

√ Parallelly connected 3PCS lights per driver by remote drivers.
√ 24V DC option available
√ Plenum rated cable option available
√ CCEA or emergency option availabe
It is a lighting solution that can be replaced with 9/16",15/16" removable cross tee of the grid ceiling, allowing our linear light to be seamlessly integrated into the suspended ceiling.
Can the T-grid led linear light work with emergency LED backup?
A1: Yes, 10W TB2 works with OKT’s 8w low voltage EM and 20w TB4 works with OKT’s low voltage 8w or 16w emergency backup, and 1pc EM powers 1pc T-grid fixture.
How many pcs fixture can the T-grid driver power?
A2: Maximum 3pcs. There are 3 ports on the driver box, so it can power 1-3pcs.
Can the T-grid linear light fixture work with 24VDC POE drivers?
A3: Our default setting is 36V DC input, but we can customize to make it 24V DC as well.
I know you have 2ft and 4ft options, can you make it longer if comes to some special project?
A4: Yes, we can customize per your projects like 6ft, 8ft.
More information please contact our sales representative.
OKT Lighting has innovated new generation lighting solutions for the ceiling suspension system that is T-Grid recessed linear lighting fixtures which obtained US patent. This recessed linear light fixture can replace 2ft or 4ft cross tee of the ceiling suspension system. It is not just reducing building materials and labor, but create elegant and clean atmosphere with continuous run. It is an added unique separate design with LED module and T-Grid bracket which you can replace the LED module randomly for your different needs and compatible to 9/16" T-grid ceiling, offer lighting designers more freedom to design since the led module can follow the ceiling elements in many different ways. It adopt remote driver, which parallelly connected 3pcs units per driver.
Grid Type: 9/16"
100-277V AC
CRI: Ra>80
PF: >0.9
Color Temp: 3000K,3500K,4000K,5000K available
LED Lifetime: >50,000H L70 minimum
Dimming: 0-10V
Tested Dimmers: Lutron ® Diva-Dvtv, Leviton ® IP-710-D
Driver: Remote, 1 for 3 lights
Feature
Listing: US Patent, UL, CUL,DLC, IC Rated
Plenum rated cable option available
Remote driver with RJ45 ternimal
Flexible separable design of led module and T-grid bracket
Seamless continuous runs
Custom pattern option available
24V DC option available
Emergency option available
CCEA option available
5 years limited warranty
Specification
Size/Wattage: 2FT 10W, 4FT 20W
Efficacy: 115 lm/w
24V DC Option
Custom Pattern Option
CCEA Option
DLC
Size/Wattage: 2FT 10W, 4FT 20W
Efficacy: 115 lm/w
24V DC Option
Custom Pattern Option
Size/Wattage: 2FT 10W, 4FT 20W
Efficacy: 115 lm/w
Featuring new generation green led lighting solutions, OKT T-Grid led linear light fixtures with milky diffusing have an added unique combination of direct and indirect illumination, enlarging the lumen spread over the entire space with 120 degree beam angle. This led linear lighting luminaires deliver up to 130 lm/w. It is available in 2ft 10w and 4ft 20w which can compatible to 15/16” standard t-grid of suspended ceilings system and offers lighting designers more freedom to design since the led module can follow the ceiling elements in many different ways. It is suitable for commercial and institutional environments such as office building, medical, health, educational, retail, hotel, airport, hospitality, ect that require a unique and elegant architectural lighting design.
Grid Type: 15/16"
100-277V AC
CRI: Ra>80
PF: >0.9
Color Temp: 3000K,3500K,4000K,5000K available
LED Lifetime: >50,000H L70 minimum
Dimming: 0-10V
Tested Dimmers: Lutron ® Diva-Dvtv, Leviton ® IP-710-D
Driver: Remote, 1 for 3 lights
Feature
Listing: US Patent, UL, CUL, Damp Rated
Plenum rated cable option available
Remote driver with RJ45 ternimal
Flexible separable design of led module and T-grid bracket
Seamless continuous runs
Custom pattern available
24V DC option available
Emergency option available
CCEA option available
5 years limited warranty
Fit most ceiling type, like Prelude XL
Specification
Size: 2FT
Input Wattage: 10W
Efficacy: 130 lm/w
Delivered Lumen: 1300 lm
Size: 4FT
Input Wattage: 20W
Efficacy: 130 lm/w
Delivered Lumen: 2600 lm
DriverPower: 30W, 60W
Driver-EM1pc driver + 8W emergency driver
Extension CableLength: 145.7"
