Surface Mounted Linear led Lighting

Surface Slim Linear Light

The LS serie is a high performance luminaire, featuring top-end performance paired with a modern aesthetic, the true ingenuity comes from its unique construction. It will be your go-to-choice for offices, schools, hospital, corridor light industrial spaces or anywhere stylish lines of light are desired.

√ Extruded aluminum frame -Providing superior thermal management to ensure long life

√ PMMA light guide -Quality Assurance

Elegant Design

The bold, elegant design of the LS series is aesthetically pleasing to any space, featuring simple yet powerful line. This linear’s sturdy construction is paired with the ability to deliver light that provides both quality illumination and energy-efficient performance.

√ Elegant - Ultra thin profile (Only 0.94" thickness)

√ Integrate with surface mounted and recessed with built-in driver.

CCT and Wattage Select -

Configure 36 Options With Only 4 SKUs

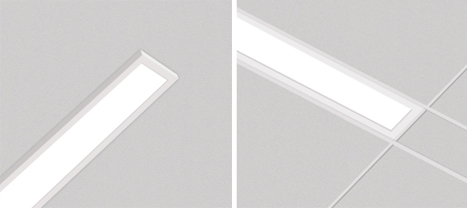

Application flexibility - Surface / Recessed optimized for use in many spaces

It can be surface mounted (ultra-thin) or recessed and strategically placed throughout the space to create pleasing illumination in rows or individual placement, providing the flexibility to adapt to the changing needs of the space or environment.

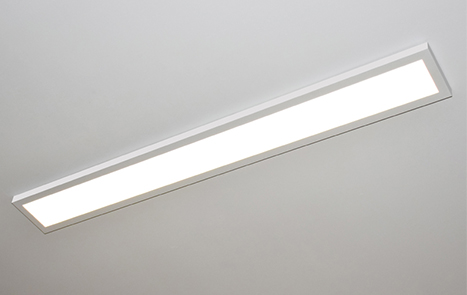

surface mounted linear led lights

Simplified Installation

Easy and quick installation, especially for surface mounted which only 5 simple steps to complete the whole process within 10 minutes .

surface mounted linear led lights

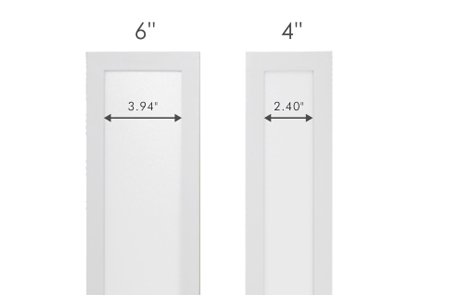

Surface Linear Slim - 4inch x 2ft

LS serie architectural linear light is integrated with surface mounted and recessed with built-in driver. Only 0.94" thickness makes it able to be installed the LED light just about anywhere. Available in two fixed lengths and apertures, It can create pleasing illumination. A selectable slide switch comes standard with three selectable color temperatures, providing the flexibility to adapt to the changing needs of the space, setting, or environment. It will be your go-to-choice for offices, schools, hospital, corridor light industrial spaces or anywhere stylish lines of light are desired.

Performance summary

Model: LS24-XXX

Wattage: 20W

Efficacy: 800LM/FT

Lumens: 1600 LM

Input Voltage: 110-2777V or 110~347V AC

Beam Angle: 112°

CRI: Ra>80

PF:>0.9

LED Lifetime: >50,000H L70 minimum

Dimming: 1-10V

Tested Dimmers: Lutron ® Diva-Dvtv, Leviton ® IP-710-D

Features

UL, cUL Listed, Damp Rated

Ultra thin profile, only 0.94" thickness

CCT Adjustable: 3000K,3500K,4000K by dip switch

Built-in driver, supports both surface and recessed mounts

Easy and quick installation

5 years limited warranty

Surface Linear Slim - 4inch x 4ft

LS serie architectural linear led light is integrated with surface mounted and recessed with built-in driver. Only 0.94" thickness makes it able to be installed the LED light just about anywhere. Available in two fixed lengths and apertures, It can create pleasing illumination. A selectable slide switch comes standard with three selectable wattage levels and three selectable color temperatures, providing the flexibility to adapt to the changing needs of the space, setting, or environment. It will be your go-to-choice for offices, schools, hospital, corridor light industrial spaces or anywhere stylish lines of light are desired.

Performance summary

Model: LS44-XXX

Wattage Selectable:20W/30W/40W

Efficacy: 600LM/FT

Lumens: 1600LM/2400LM/3200LM

Input Voltage: 110-2777V or 110~347V AC

Beam Angle: 112°

CRI: Ra>80

PF:>0.9

LED Lifetime: >50,000H L70 minimum

Dimming: 1-10V

Tested Dimmers: Lutron ® Diva-Dvtv, Leviton ® IP-710-D

Features

UL, cUL Listed, Damp Rated

Ultra thin profile, only 0.94" thickness

CCT Adjustable: 3000K,3500K,4000K by dip switch

Built-in driver, supports both surface and recessed mounts

Easy and quick installation

5 years limited warranty

Surface Linear Slim - 6inch x 2ft

LS serie architectural linear light fixture is integrated with surface mounted and recessed with built-in driver. Only 0.94" thickness makes it able to be installed the LED light just about anywhere. Available in two fixed lengths and apertures, It can create pleasing illumination. A selectable slide switch comes standard with three selectable color temperatures, providing the flexibility to adapt to the changing needs of the space, setting, or environment. It will be your go-to-choice for offices, schools, hospital, corridor light industrial spaces or anywhere stylish lines of light are desired.

Performance summary

Model: LS26-XXX

Wattage: 20W

Efficacy: 850LM/FT

Lumens: 1700 LM

Input Voltage: 110-277V or 11~347V AC

Beam Angle: 112°

CRI: Ra>80

PF:>0.9

LED Lifetime: >50,000H L70 minimum

Dimming: 1-10V

Tested Dimmers: Lutron ® Diva-Dvtv, Leviton ® IP-710-D

Features

UL, cUL Listed, Damp Rated

Ultra thin profile, only 0.94" thickness

CCT Adjustable: 3000K,3500K,4000K by dip switch

Built-in driver, supports both surface and recessed mounts

Easy and quick installation

5 years limited warranty

Surface Linear Slim - 6inch x 4ft

LS serie architectural linear led lighting is integrated with surface mounted and recessed with built-in driver. Only 0.94" thickness makes it able to be installed the LED light just about anywhere. Available in two fixed lengths and apertures, It can create pleasing illumination. A selectable slide switch comes standard with three selectable wattage levels and three selectable color temperatures, providing the flexibility to adapt to the changing needs of the space, setting, or environment. It will be your go-to-choice for offices, schools, hospital, corridor light industrial spaces or anywhere stylish lines of light are desired.

Performance summary

Model: LS46-XXX

Wattage Selectable:20W/30W/40W

Efficacy: 712LM/FT

Lumens: 1900LM/2850LM/3800LM

Input Voltage: 110-277V or 110~347V AC

Beam Angle: 112°

CRI: Ra>80

PF:>0.9

LED Lifetime: >50,000H L70 minimum

Dimming: 1-10V

Tested Dimmers: Lutron ® Diva-Dvtv, Leviton ® IP-710-D

Features

UL, cUL Listed, Damp Rated

Ultra thin profile, only 0.94" thickness

CCT Adjustable: 3000K,3500K,4000K by dip switch

Built-in driver, supports both surface and recessed mounts

Easy and quick installation

5 years limited warranty
