Description

This dimmable linear led fixture is a commercial and architectural lighting fixture with regressed diffusing that allows the light to change the baffle color with several optional colors or custom. It is available in 2 foot and 4 foot with internal UL Recognized driver which support 0-10V dimming. Also, It can design custom pattern to your space. Your room no longer has to be restricted to a single pattern on the ceiling, instead it can provide a flexible general lighting solution for commercial and institutional environments.

Performance Summary

Model Number	LG2-DM-XXD	LG4-DM-XXD
Dimension	2FT	4FT
Input Wattage	19 Watts	38 Watts
Input Voltage	100-277V AC	100-277V AC
Delivered Lumen	1330 lm	2660 lm
Efficacy	>70 lm/w	>70 lm/w
Power Factor	Ra>80	Ra>80
IP Rated	PF > 0.9	PF > 0.9
Lifespan	50,000 Hours	50,000 Hours
Beam Angle	100°	100°
Driver Type	0-10V Dimming	0-10V Dimming
Warranty	5 Years	5 Years
Installation	Suspended, Surface Mounted	Suspended, Surface Mounted
ETL	5001795	5001795
Warranty	5 Years	5 Years
Damp Rated	YES	YES

Applications

This is a perfect minimalistic solution, providing architectural lighting design for office building,educational, retail store, hotel, hospitality,etc.

Optional accessories

T-Grid Hanger 612232

4inch Round Canopy

610939

2inch Square Canopy

612230

2inch Round Canopy

612231

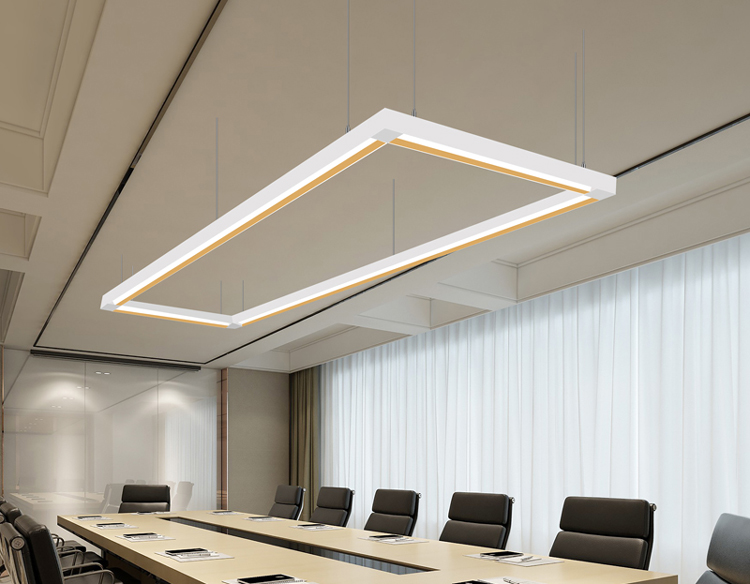

suspended linear light fixture

Optional mounting accessories

The linear light provides the freedom to create compelling spaces, take light around corners or add dimension with patterns. Your space no longer has to be restricted to a single pattern on the ceiling, achieving a flexible architectural lighting solution for commercial and institutional environment.
