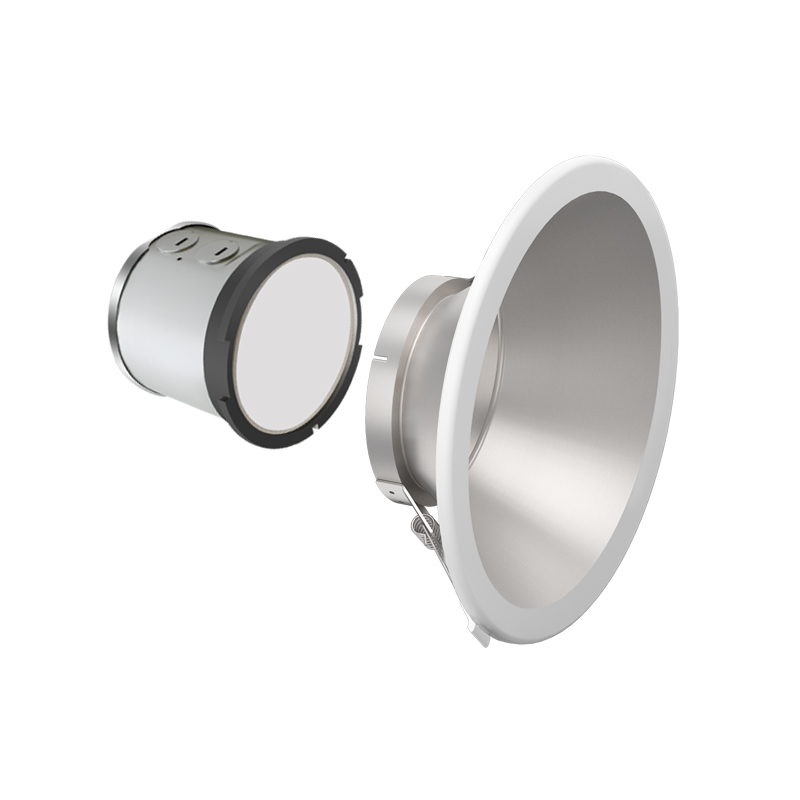

20W Split J-box LED Recessed Lighting

20W Split J-box LED Recessed Lighting

Model No
CPS-D20W-XXX
Price
Get Latest Price
Get the latest price
Quantity Needed:
Pieces
E-mail:

Downloads

Brochures CP Series



Brochures



Data Sheet CPS



Data Sheet



Installation CP8-D10W-XXX



Installation Instruction



LM79 Repot  CP4-D20W-XXX



LM79 Report



IES File  CP4-D20W-XXE



IES Files

4 inch Round Trim

IES File  CP6-D20W-XXX



IES Files

6 inch Round Trim

IES File  CP8-D20W-XXX



IES Files

8 inch Round Trim

IES Files CP4-D20W-40E-S 4inch 4000K Square Trim



IES Files

4inch Square Trim

IES Files CP4-D20W-40W 4inch square wall wash trim





IES Files

4inch square wall wash trim


20W Split J-box LED Recessed Lighting
OKT’s 20W Split J-box led recessed lighting is the easy and economical way to add high quality recessed lighting to residential and commercial spaces. The innovative separable design of junction box and housing make more flexible and considerate. Energy Star certified for 4", 6" and 8″ 10" configurations. Easy-fit installation with adjustable spring-action housing clips. The junction box recessed light is designed and engineered for recessed applications, which is suitable to commercial and public places and elegantly decorates the ambience, such as shopping mall, hospital, airport, hotel lobby, etc

Performance summary

120-347VAC Input

CRI: Ra>80

PF: >0.9

LED Lifetime: >35,000H L70 minimum

Dimming: 1-10V

Tested Dimmers: Lutron ® Diva-Dvtv, Leviton ®

IP-710-D

Materials: Aluminum haze trim with white trim ring

Mounting: recessed


Features

UL, CUL, Energy Star and Damp Rated

CCT adjustable option by dip switch

Split design of led light engine and trim,  one engine allows for seamless integration of multiple trim options

Trim sizes: 4", 6", 8" and 10"

Trim types: round, square and wall wash

Simple Installation with spring-action housing clips

Integrated J-Box for direct wire eliminated recessed can, perfect and economic solution for new construction applications.

5 years limited warranty


Specification
Available in IC and NON-IC
led recessed downlight  CPS-D20W-XXX

Wattage: 20W

Efficacy: 75 LM/W

Luminous Flux: 1500 LM

Type: Non-IC

j box compatible recessed light  CPS-D20W-I35T

Wattage: 20W

Efficacy: 80 LM/W

Luminous Flux: 1600 LM

Type: IC



Split Design Of Engine And Trim
One engine allows for seamless integration of multiple trim options.
Round


4" 6" 8" 10"

>>>>>>>>


Round

Wall wash

4" 6"

>>>>>>>>


Square


4" 6"

>>>>>>>>


Square

Wall wash

4" 6"

>>>>>>>>>





Need more ?  Please fill out the following form, we OKT sales representative will contact you within 12 hours.  Thank you!



Trims

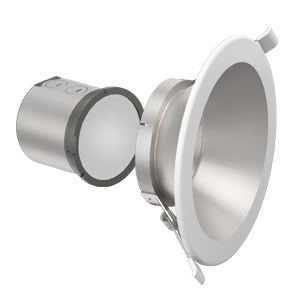

 4" Round Trim

Mounting Diameters: 4.7"- 5.2"

 6" Round Trim

Mounting Diameters: 6"-7.3"

 8" Round Trim

Mounting Diameters: 7.4"- 8.9"

 10" Round Trim

Mounting Diameters: 9.5"- 10.8"

-

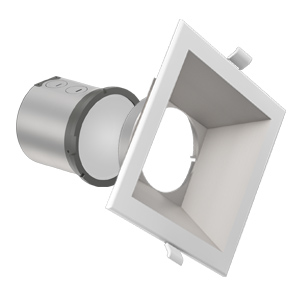

  4" Square Trim

Mounting Diameters: 5.3"- 6"

  6" Square Trim

Mounting Diameters: 6"-7.3"

  4" Square Wall Wash

Mounting Diameters: 5.3"- 6"

Tilt:15-20°

  6" Square Wall Wash

Mounting Diameters: 6"- 7.3"

Tilt:15-20°

-


4" Round Wall Wash

Mounting Diameters: 5.3"-6"

Tilt:15-20°


6" Round Wall Wash

Mounting Diameters: 6"-7.3

Tilt:15-20°


Housing

 4“ Housing

Hole Diameter: 4.25"

 6“ Housing

Hole Diameter: 6.25"

 8" Housing

Hole Diameter: 7.87"
