US Patent 15/16 inch Clear Diffusing T-grid Linear Lighting Solutions

US Patent 15/16 inch Clear Diffusing T-grid Linear Lighting Solutions

Model No
TB2-LM-XXL, TB4-LM-XXL
Features

UL, US Patent

2FT, 4FT size options

Remote driver

0-10V dimming

Seamless continuous runs

Cover 15/16'' of T-Grid


Price
Get Latest Price
Get the latest price
Quantity Needed:
Pieces
E-mail:

DESCRIPTION
SUBTITLE


OKT T-Grid led linear lighting solutions with clear diffusing for direct lighting is equipped with controlled light distributions of beam angle options 70° and 90° for controlled distribution. It has obtained US patent and an added unique separate design with LED module and T-Grid bracket which it offers lighting designers more freedom to design since the led module can follow the ceiling elements in many different ways. It is available in 2’ and 4’ units with 15/16” and adopt remote driver, which parallelly connected 3pcs units per driver.


PERFORMANCE SUMMARY
SUBTITLE


Model Number

TB2-LM-XXL

TB4-LM-XXL
Grid Type15/16"15/16"

Dimension

2FT

4FT

Input Wattage

10 Watts

20 Watts

Input Voltage

100-277V AC

100-277V AC

Delivered Lumen

1200 lm

2400 lm

Efficacy

>120 lm/w

>120 lm/w

Driver

1 for 3

1 for 3

Beam Angle

70°/ 90°

70°/ 90°

Color Rendering Index

Ra>80

Ra>80

Power Factor

PF > 0.9

PF > 0.9

Lifespan ( Hours)

50,00050,000

Warranty (Years)

5

5
ULYESYES
US Patent1012593410125934
Damp RatedYESYES


FEATURES
SUBTITLE


Clear Diffusing For Direct Lighting
Beam angle is available in 70° or  90° options

70° BEAM ANGLE
.

90° BEAM ANGLE
.




Applications

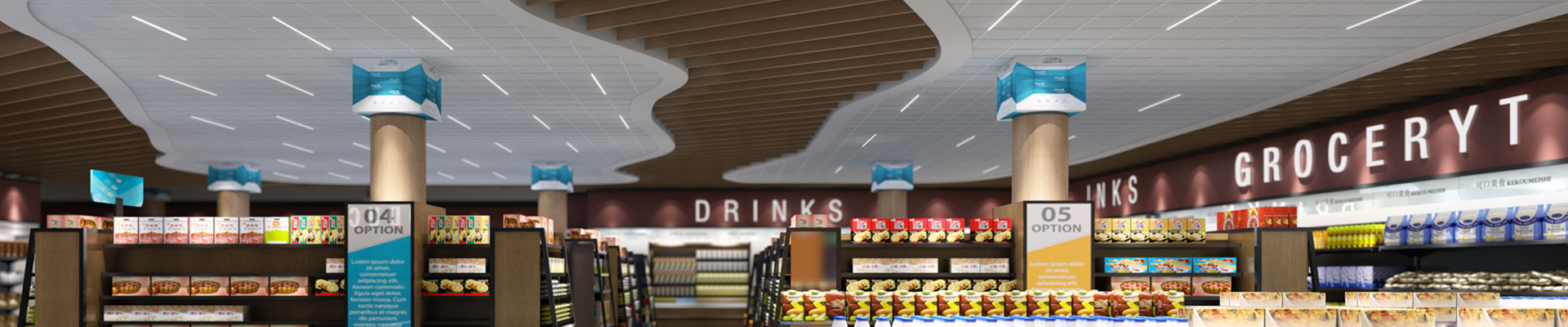

Your room no longer has to be restricted to a single fixture in the ceiling, instead it can provide a flexible general lighting solution for commercial and institutional environments such as office building, medical, health, educational, retail, hotel, airport, hospitality, ect that require a unique and elegant architectural lighting design.



FAQS
Can the T-grid linear lighting solution work with emergency led driver?

A1: Yes, 10W TB2 works with OKT’s 8w low voltage EM and 20w TB4 works with OKT’s low voltage 8w or 16w EM, and 1pc EM powers 1pc T-grid led fixture.


How many pcs fixture can the T-grid driver power?
A2: Maximum 3pcs. There are 3 ports on the driver box, so it can power 1-3pcs.


Can the T-grid linear lighting work with 24VDC POE drivers?

A3: Our default setting is 36VDC input, but we can customize to make it 24VDC as well.


I know you have 2ft and 4ft options, can you make it longer if comes to some special project?

A4: Yes, we can customize per your projects like 6ft,8ft.
